Construction power distributor metal M-AVEV 35/11-3/V1/A/STEIERMARK

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Construction power distributor metal M-AVEV 35/11-3/V1/A/STEIERMARK
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000484
Model	Connection-/distributor cabinet
Rated current	35 A
Rated voltage	230/400 V

Packing details

Packing level 1

9003399318955

Other Technical data

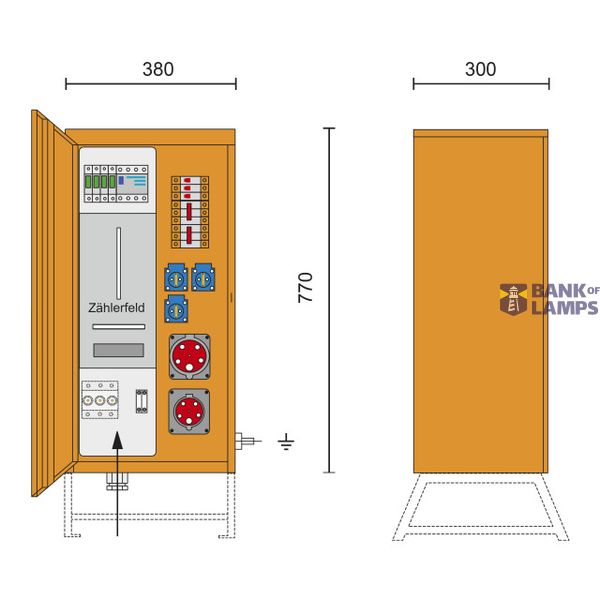

Width	380 mm
Height	770 mm
Depth	300 mm
Main switch	None
Number of CEE socket outlets 16 A / 400 V / 5P	1
Number of CEE socket outlets 32 A / 400 V / 5P	1
Number of socket outlets with protective contact (type F)	3
Connected load	22 kVA
Number of meter panels	1
Housing material	Sheet steel
Leakage current type	A
Degree of protection (IP)	IP44
Number of earth leakage switches 30 mA	1
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

Versorgungsgebiet: STEWE AG
Baustromverteiler 35A nach ÖVE EN 61439/4
RAL 2000 / 25kg / 380x770x300mm (BxHxT) ohne Untergestell
incl. Überspannungsableiter 3+1 (TT+TN) Kl."C" (25A - 125A)
Anschlusssicherung: Neozed-Element D02 35A
Anschlussquerschnitt: max. 25mm² Al/Cu
Zählerplatz: Wirkstromzählerschleife H07V-K 16mm² 400V AC
1xCEE-Steckdose 32A 5p 400V abgesichert ü. 1xLS 32A 3p C
1xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
3xSK-Steckdose 16A 250V IP54 abgesichert ü. 3xLS 16A 1p C
1xFI 40A/4/0.03A therm. fest über alle Ausgänge
