HC-STA-RJ45CT-HT-M20-PLRBK - Connector set

Name: HC-STA-RJ45CT-HT-M20-PLRBK - Connector set
Brand: Phoenix Contact
Price: 8.990 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

8,99 € per pcs

This price is valid until 24.12.25

EAN: 4063151355005

MPN: 1249554

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-STA-RJ45CT-HT-M20-PLRBK - Connector set
Brand	Phoenix Contact
Categories	Rectangular Connectors
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Mounting method	Flange
Locking mechanism	Single locking lever
Rated voltage	50 V
Number of poles	8
Contact type	Pin
Housing material	Other
Coating housing	Other
Operating temperature	-25-60 °C
Rated surge voltage	0.8 kV
Degree of protection (IP), mounted	IP66
Rated current In	0 A

Packing details

Packing level 1

4063151355005, 4063151355005

Other Technical data

Width	0 mm
Height	0 mm
Depth	0 mm
Number of conduit inlets	0
EMC-version	No
Ambient temperature	60 °C
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Other
Impact strength	IK06
With sealing	Yes
Over voltage category	III
Pollution degree	3
Number of plug-in contact rows	0
With protective conductor	No
Material insulation body	Other
Material contact	Other
Position cable feed	Other

Description

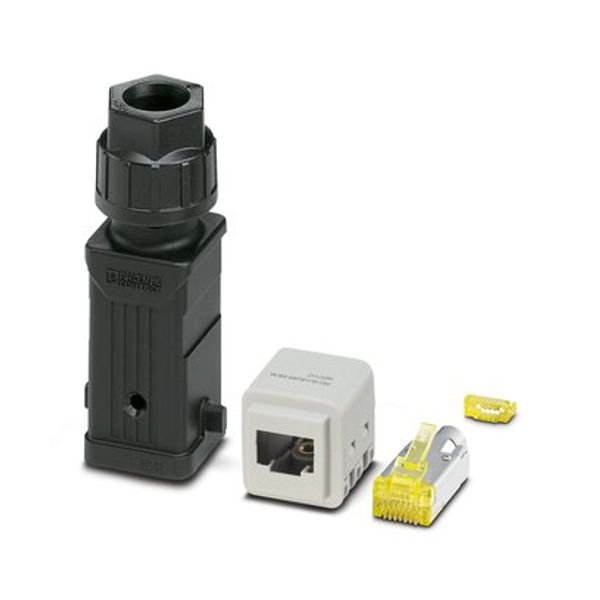

Connector set, number of positions: 8, CAT6A, material: PA, connection method: Crimp connection, connection cross section: AWG 24- 27, cable outlet: straight, With RJ45 contact insert, with slotted seal
