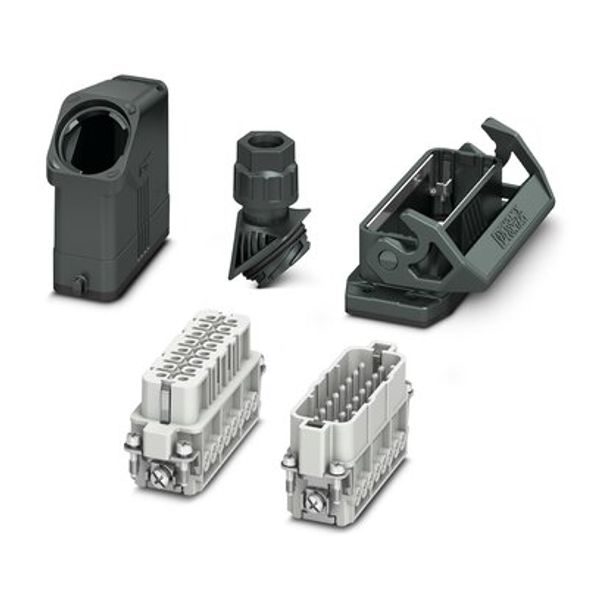

HC-EVO-A16UT-BWS-HH-M25-PLRBK - Connector set
Order only
Price (excl. VAT):
41,92 €
per pcs
EAN: 4046356929288
MPN: 1411358
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HC-EVO-A16UT-BWS-HH-M25-PLRBK - Connector set |
| Brand | Phoenix Contact |
| Categories |
Rectangular Connectors
|
| Country of origin | CN |
| Harmonized System Code | 8536 6990 00 |
| Locking mechanism | Single locking lever |
| Rated voltage | 250 V |
| Number of poles | 16 |
| Contact type | Hermaphrodite |
| Housing material | Other |
| Coating housing | Other |
| Operating temperature | -40-100 °C |
| Rated surge voltage | 4 kV |
| Degree of protection (IP), mounted | IP66 |
| Rated current In | 0 A |
Packing details
| Packing level 1 | 4046356929288, 4046356929288 |
Other Technical data
| Width | 39 mm |
| Height | 114.5 mm |
| Depth | 97 mm |
| Number of conduit inlets | 1 |
| EMC-version | No |
| Ambient temperature | 100 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Other |
| With sealing | No |
| Over voltage category | III |
| Pollution degree | 3 |
| Number of plug-in contact rows | 0 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.5-2.5 mm² |
| With protective conductor | No |
| Material contact | Other |
| Position cable feed | Other |
Description
Connector set, degree of protection: IP66, number of positions: 16, material: PA, connection method: Screw connection, connection cross section: AWG 20- 14
