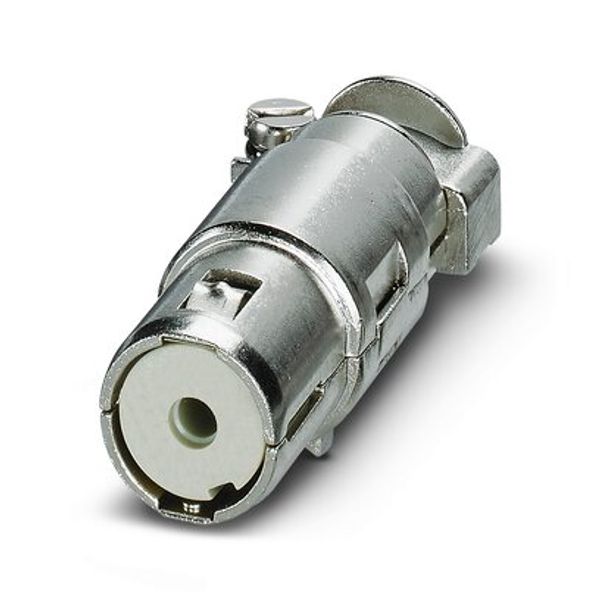

HC-M-01-COAX-CK1,6-75-F - Connector
Order only
Price (excl. VAT):
8,98 €
per pcs
EAN: 4055626733876
MPN: 1066961
Box: 1
Estimate delivery time to our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HC-M-01-COAX-CK1,6-75-F - Connector |
| Brand | Phoenix Contact |
| Categories |
Rectangular Connectors
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 48 V |
| Type of electric connection | Crimp connection |
| Over voltage category | III |
Packing details
| Packing level 1 | 4055626733876, 4055626733876 |
Other Technical data
| Width | 0 mm |
| Height | 15.5 mm |
| Depth | 45.9 mm |
| With wire protection | No |
| Number of poles | 1 |
| Contact type | Bus |
| Ambient temperature | 85 °C |
| Operating temperature | -40-85 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Rated surge voltage | 0.8 kV |
| Material of contact surface | Gold |
| Pollution degree | 3 |
| Diameter plug-in contact | 1.6 mm |
| Contact insert without contacts | Yes |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.14-2.5 mm² |
| With protective conductor | No |
| Material contact | Other copper alloys |
| Material connector insert | Thermoplastic |
| Rated current In | 10 A |
| Material of contact insert | Thermoplastic |
| Min. number of insertion cycles | 500 |
| Number of power contacts | 0 |
| Number of control contacts | 1 |
Description
Connector, number of positions: 1, power contacts: 0, control contacts: 1, Socket, Crimp connection, 48 V, 10 A, 0.14 mm² ... 2.5 mm², external cable diameter:3 mm ... 9.5 mm, application: COAX, 75 Ω
