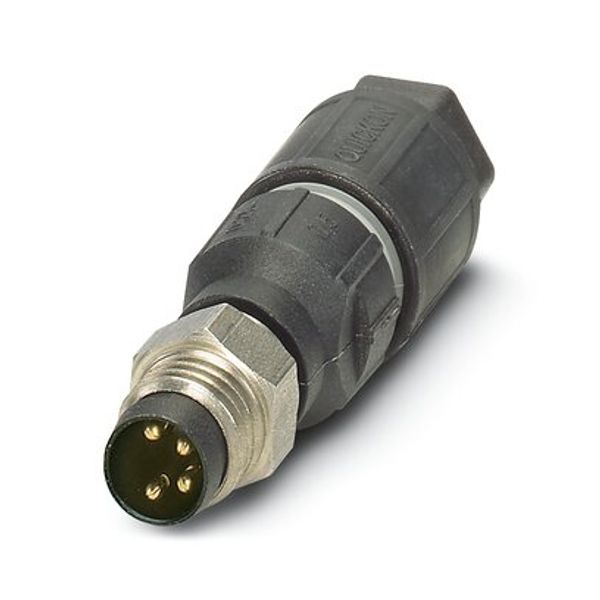

SACC-M 8MS-4QO-0,5-VA - Connector image 1

SACC-M 8MS-4QO-0,5-VA - Connector image 2

SACC-M 8MS-4QO-0,5-VA - Connector image 3

SACC-M 8MS-4QO-0,5-VA - Connector

Name: SACC-M 8MS-4QO-0,5-VA - Connector
Brand: Phoenix Contact
Price: 9.750 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

9,75 € per pcs

This price is valid until 24.12.25

EAN: 4055626457659

MPN: 1426315

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACC-M 8MS-4QO-0,5-VA - Connector
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8536 6990 00
Rated voltage	30 V
Contact type	Pin
Ambient temperature	80 °C
Diameter connector	12.5 mm
Rated current In	4 A
For cable outer diameter	2.5-5 mm
Number of power contacts	0
Number of control contacts	4
Number of data contacts	0

Packing details

Packing level 1

4055626457659, 4055626457659

Other Technical data

Locking mechanism	Other
Screened	No
Housing material	Other
Coating housing	Other
With status indication	No
Inflammability class of insulation material according to with UL94	HB
Type of electric connection	Insulation displacement connection
Material of contact surface	Nickel
Thread size M	0
Over voltage category	II
Pollution degree	3
Type of housing	Straight
Connectable conductor cross section solid-core	0.5 mm²
With protective conductor	No
Min. number of insertion cycles	100
Material thread ring	Other

Description

Connector, 4-position, Plug straight M8, A, Insulation displacement connection, knurl material: Stainless steel 1.4305, external cable diameter 2.5 mm ... 5 mm
