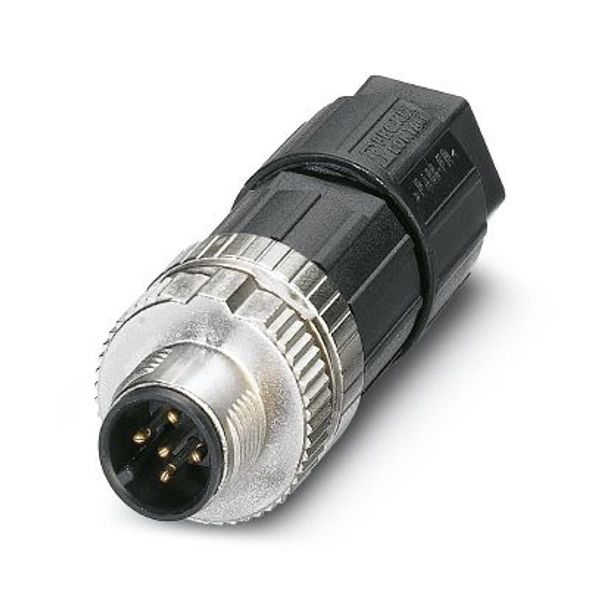

SACC-M12MS-5PL M - Connector
Order only
Price (excl. VAT):
7,09 €
per pcs
EAN: 4055626374970
MPN: 1424649
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-M12MS-5PL M - Connector |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 48 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Diameter connector | 19 mm |
| Rated current In | 4 A |
| For cable outer diameter | 4-8 mm |
| Number of power contacts | 0 |
| Number of control contacts | 5 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4055626374970, 4055626374970 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| Coating housing | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electric connection | Other |
| Material of contact surface | Nickel |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| Connectable conductor cross section solid-core | 0.75 mm² |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
| Material thread ring | Other |
Description
Connector, Universal, 5-position, unshielded, Plug straight M12, A, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
