QPD P4X2,5 6-10 BK - Connector
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
7,36 €
per pcs
EAN: 4055626366456
MPN: 1424043
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | QPD P4X2,5 6-10 BK - Connector |
| Brand | Phoenix Contact |
| Categories |
Plug-in Connectors
|
| Country of origin | PL |
| Harmonized System Code | 8536 6990 00 |
| Rated current | 20 A |
| Rated voltage | 690 V |
| Number of poles | 4 |
| Length | 71 mm |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4055626366456, 4055626366456 |
Other Technical data
| Width | 30 mm |
| Halogen free | Yes |
| Height | 30 mm |
| With strain relief | Yes |
| Housing material | Other |
| Cable diameter | 6-10 mm |
| Surface treatment contacts | Silver-plated |
| Pollution degree | 0 |
| Mechanical coding | Yes |
| Rated surge voltage | 6 kV |
| Continuity resistor | 0.004 mOhm |
| Number of connections per pole | 1 |
| Colour coding/contact insert | Black |
| Fire load | 0 kWh |
| Max. continuous temperature resistance contact part | 0 °C |
| Max. continuous temperature resistance strain relief | 0 °C |
Description

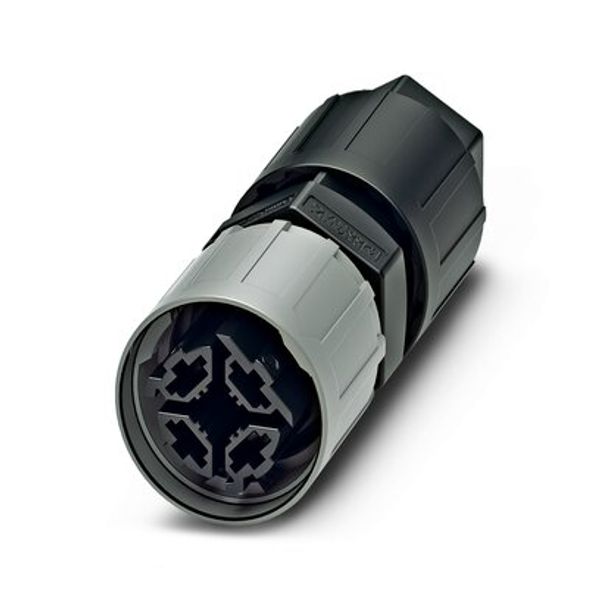

Connector, QUICKON connection, 1 mm² ... 2.5 mm², 690 V, 20 A, black, with QUICKON nut, external cable diameter: 6 mm ... 10 mm
