SACC-MS-4CON-PG 7-M SCO - Connector
Order only
Price (excl. VAT):
7,66 €
per pcs
EAN: 4046356097680
MPN: 1542952
Box: 1
Estimate delivery time to our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-MS-4CON-PG 7-M SCO - Connector |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 250 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Diameter connector | 0 mm |
| Rated current In | 4 A |
| For cable outer diameter | 4-6 mm |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356097680, 4046356097680 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| Coating housing | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | HB |
| Type of electric connection | Screw connection |
| Material of contact surface | Other |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| Connectable conductor cross section solid-core | 0.75 mm² |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
| Material thread ring | Other |
Description

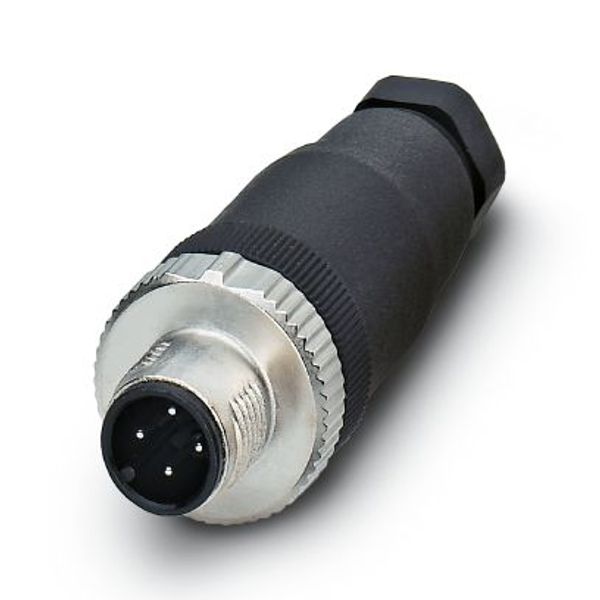

Connector, Universal, 4-position, Plug straight M12 SPEEDCON, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm ... 6 mm
