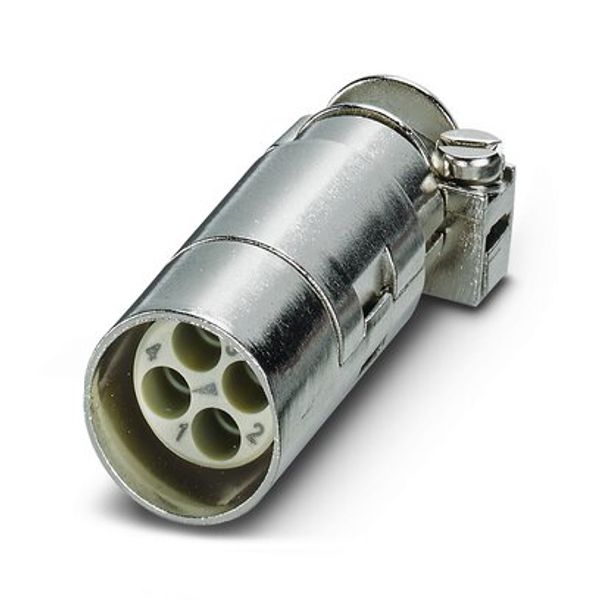

HC-M-EMV-ST/3-9,5 - Connector image 1
HC-M-EMV-ST/3-9,5 - Connector image 2
HC-M-EMV-ST/3-9,5 - Connector image 3
HC-M-EMV-ST/3-9,5 - Connector thumbnail 1
HC-M-EMV-ST/3-9,5 - Connector thumbnail 2
HC-M-EMV-ST/3-9,5 - Connector thumbnail 3
Phoenix Contact

HC-M-EMV-ST/3-9,5 - Connector

Order only
Price (excl. VAT):
14,07 € per pcs
This price is valid until 24.12.25
EAN: 4017918962920
MPN: 1636088
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name HC-M-EMV-ST/3-9,5 - Connector
Brand Phoenix Contact
Categories Rectangular Connectors
Country of origin CN
Harmonized System Code 8536 6990 00
Rated voltage 48 V
Type of electric connection Crimp connection
Over voltage category III

Packing details

Packing level 1 4017918962920, 4017918962920

Other Technical data

Width 18 mm
Height 15.5 mm
Depth 46 mm
With wire protection No
Number of poles 4
Contact type Pin
Ambient temperature 85 °C
Operating temperature -40-85 °C
Inflammability class of insulation material according to with UL94 V0
Rated surge voltage 0.8 kV
Material of contact surface Other
Pollution degree 3
Diameter plug-in contact 1.6 mm
Contact insert without contacts Yes
Connectable conductor cross section fine-strand without cable end sleeve 0.14-2.5 mm²
Connectable conductor cross section multi-wired 0.14-2.5 mm²
With protective conductor No
Material contact Other copper alloys
Material connector insert Thermoplastic
Rated current In 10 A
Material of contact insert Thermoplastic
Min. number of insertion cycles 500
Number of power contacts 0
Number of control contacts 4

Description

Connector, number of positions: 4, power contacts: 0, control contacts: 4, Pin, Crimp connection, 48 V, 10 A, 0.14 mm² ... 2.5 mm², external cable diameter:3 mm ... 9.5 mm, application: Data/signal
