Connector-3w 3x16/3 1,5m 1,5 St16/3 IP67

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Connector-3w 3x16/3 1,5m 1,5 St16/3 IP67
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399049767

Other Technical data

Colour	Grey
Cable length	1.5 m
Protection	None
Housing material	Plastic
CEE socket outlet 16 A	3x16A3p230V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A
Number of poles mains connection	3

Downloads

Product data sheet

Description

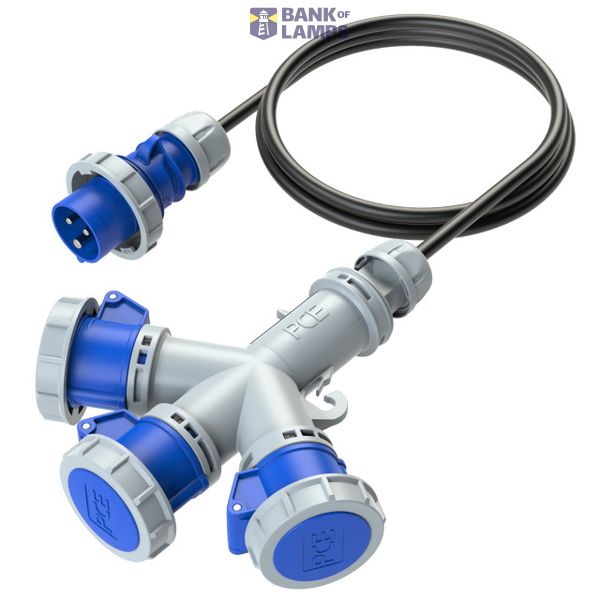

Connector-3w 3x16/3 1,5m 1,5 St16/3 IP67
housing material: PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
Entry: 1,5m cable (H07RN-F 3G1,5) with plug 16A 3p 6h
Outlet: 3x CEE-socket 16A 3p 6h
ready wired
IP protection class: IP67
