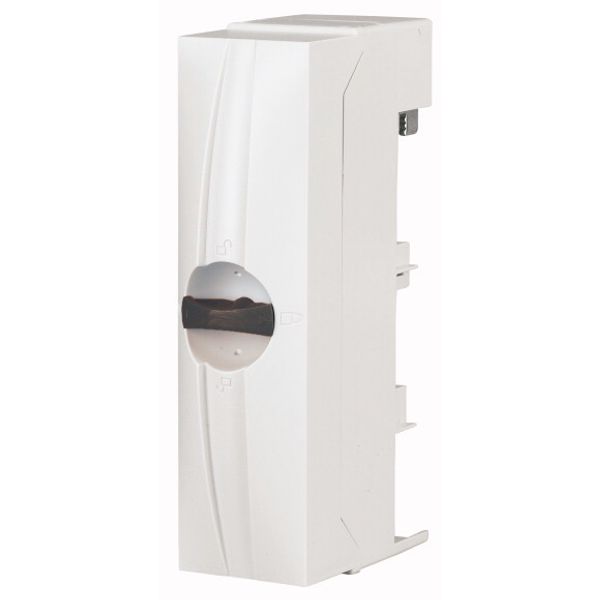

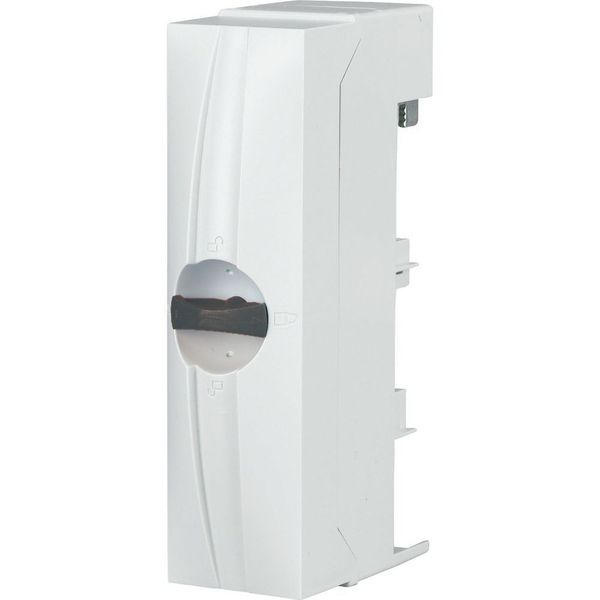

Connection terminal board 3, 35-150mm2, 90mm, compact
Order only
Price (excl. VAT):
69,95 €
EAN: 4015081351534
MPN: 138373
Package: 1
Estimate delivery time at our warehouse (approx.):
8-10 weeks
Technical Information
| Item condition | New |
| Manufacture name | Connection terminal board 3, 35-150mm2, 90mm, compact |
| Brand | EATON |
| Categories |
Busbar Systems and Accessories
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Max. rated operation current Ie | 480 A |
Packing details
| Packing level 1 | 4015081351534 |
Other Technical data
| Suitable for | Flat rail |
| Max. conductor cross section | 150 mm² |
| Width clamp | 90 mm |
| Busbar width | 12-30 mm |
| Busbar thickness | 5-10 mm |
| Suitable for strip conductor connection | Yes |
| Suitable for round conductor connection | Yes |
| Suitable for sector conductor connection | Yes |
Description
Connection terminal board, 60-mm compact system, poles=3, screw terminals, terminal capacity=35 up to 150mm² or AWG2-MCM300 or 10x20x1 or 10x16x0.8, Ie=480A, width=90mm, can be used for rail 12x5/10, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, the terminal can be removed for the connection of uncut conductors, passing through is not possible
