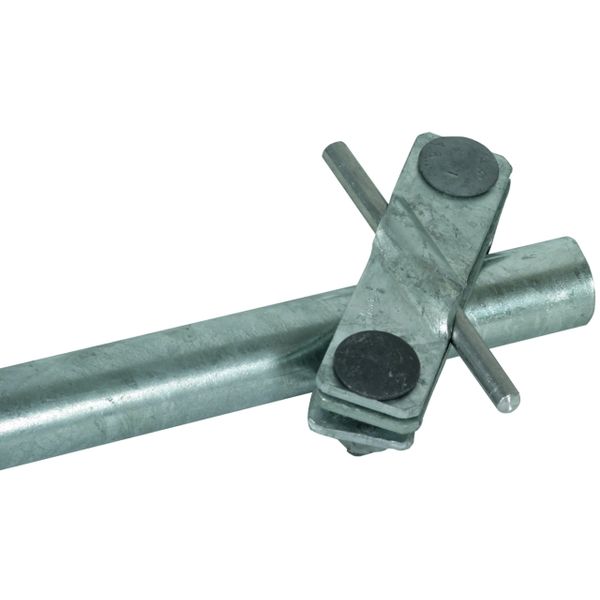

Connection clamp f. tubular earth rod St/tZn D 27mm f. Rd 7-10/Fl -40m

Order only

Price (excl. VAT):

6,48 €

This price is valid until 24.12.25

EAN: 4013364106864

MPN: 640015

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Connection clamp f. tubular earth rod St/tZn D 27mm f. Rd 7-10/Fl -40m
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Construction type	Terminal bracket
Material	Steel
Clamping range round conductor	7-10 mm
Clamp width flat conductor	Up to 40 mm

Packing details

Packing level 1

4013364106864, 4013364106864

Other Technical data

Diameter earthing connection

27 mm

Downloads

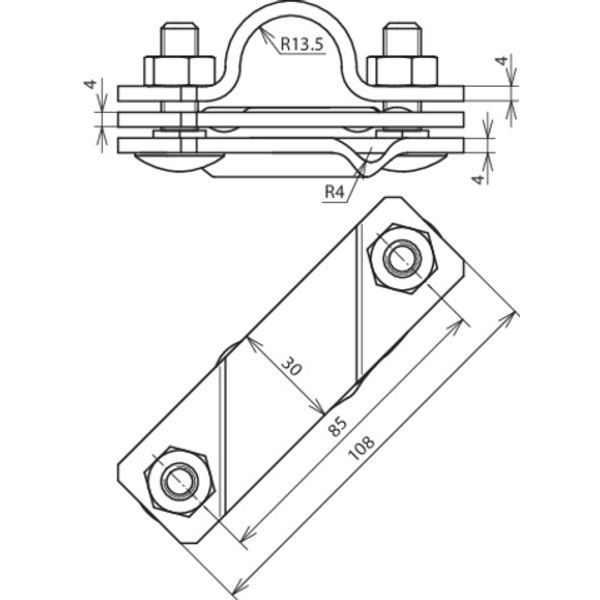

Product data sheet Dimensioned drawing Deep link REACH

Description

Connection bracket according to EN 62561-1, to connect round conductors, cables and flat strips to earth rods. Diagonal design with truss head screw, especially for tubular steel earth rods, also for uncut earth conductors.
