Connecting clamp, St/tZn for building reinforcements for Rd 6-10mm/Fl

Order only

Price (excl. VAT):

4,04 €

This price is valid until 24.12.26

EAN: 4013364035874

MPN: 308026

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Connecting clamp, St/tZn for building reinforcements for Rd 6-10mm/Fl
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Hexagon screw
Material	Steel
Lightning current load-bearing capacity (10/350 µs)	13 kA
Diameter round conductor 1	6-10 mm
Width flat conductor 1	30 mm

Packing details

Packing level 1

4013364035874, 4013364035874

Other Technical data

Type of connector	T-/cross-/parallel connector
Width flat conductor 2	30 mm

Downloads

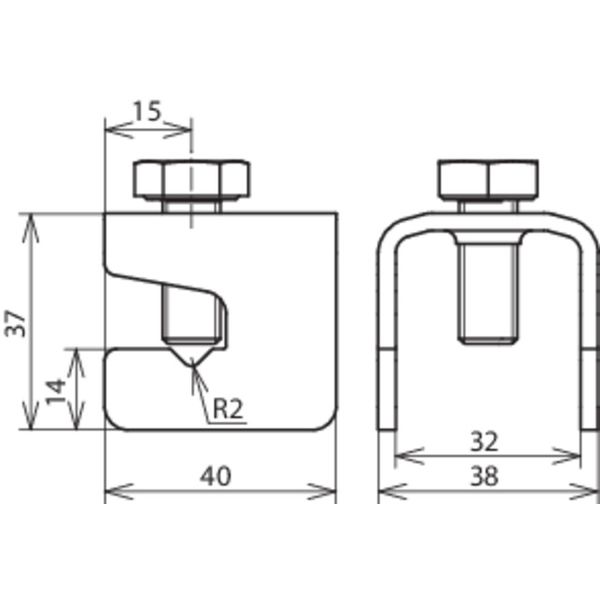

Product data sheet Dimensioned drawing

Description

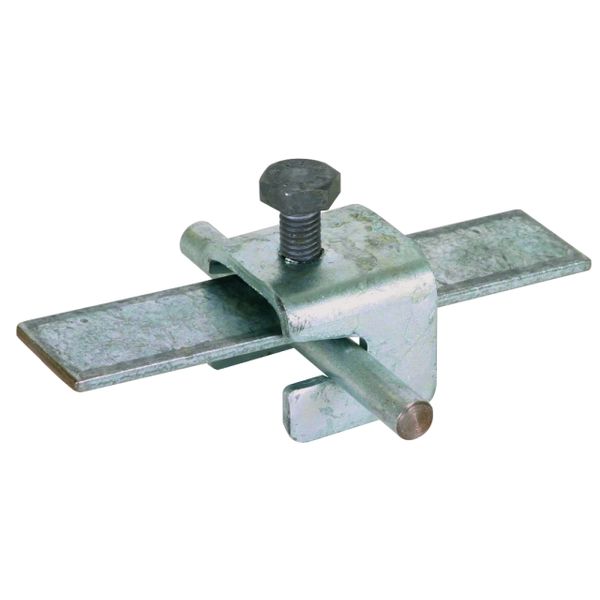

Connecting clamp according to EN 62561-1, for connecting reinforcing steel mesh and reinforcements with flat conductors. Design for T, cross and parallel connections.
