Connecting box 3-pole, 3x3 out
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Connecting box 3-pole, 3x3 out |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | Other |
| Type of distributor | Switching distributor |
| Mounting possibility | Integrated |
Packing details
| Packing level 1 | 6418677708145 |
| Packing level 2 | 6418677708145 |
| Packing level 3 | 6418677708145 |

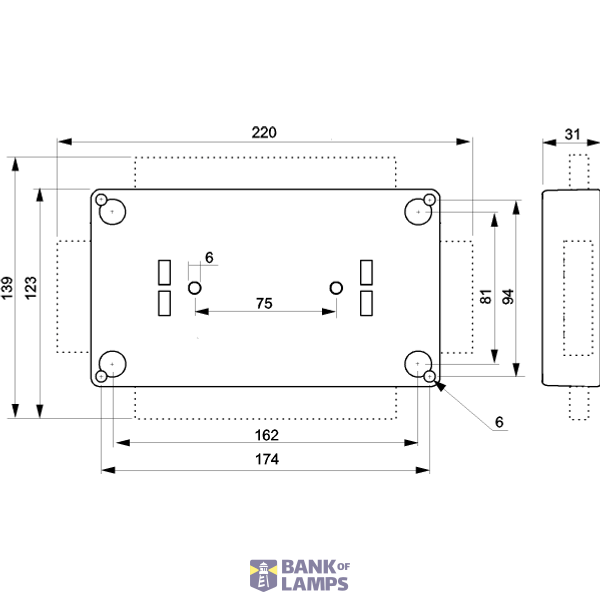

Other Technical data
| Width | 220 mm |
| Halogen free | Yes |
| Height | 123 mm |
| Length | 31 mm |
| Mechanical coding | Yes |
| Max. continuous temperature resistance contact part | 80 °C |
Description

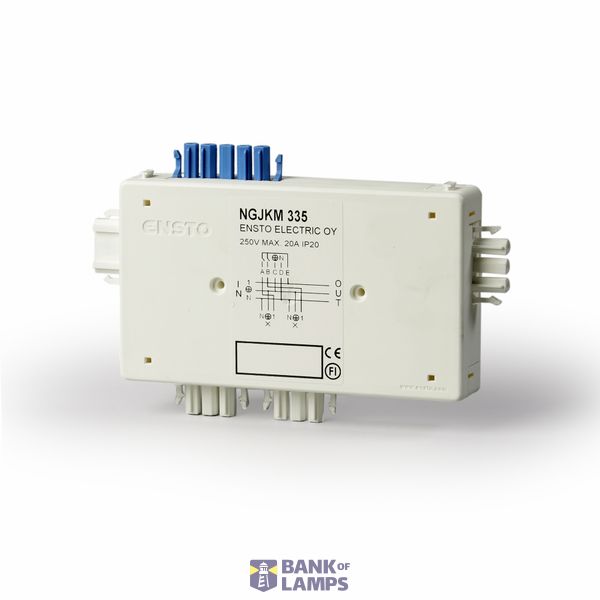

The single-phase, continuous NGJKM335 switchbox is designed for the control of two single-phase lighting groups. With this switchbox, a single-phase supply is distributed to one lighting group via a five-pole switch. In addition to the phase, zero and protective earth are connected to the five-pole switch, and therefore the supply cleaning socket located next to a door frame can be connected via the switchbox.
