Connecting box 3-pole, 1-switch
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Connecting box 3-pole, 1-switch |
| Brand | Ensto |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Type of integrated switching | Other |
| Type of distributor | Switching distributor |
| Mounting possibility | Integrated |
Packing details
| Packing level 1 | 6418677116353 |
| Packing level 2 | 6418677116353 |
| Packing level 3 | 6418677116353 |
Other Technical data
| Width | 136 mm |
| Halogen free | Yes |
| Height | 80 mm |
| Length | 23 mm |
| Mechanical coding | Yes |
| Max. continuous temperature resistance contact part | 80 °C |
Description

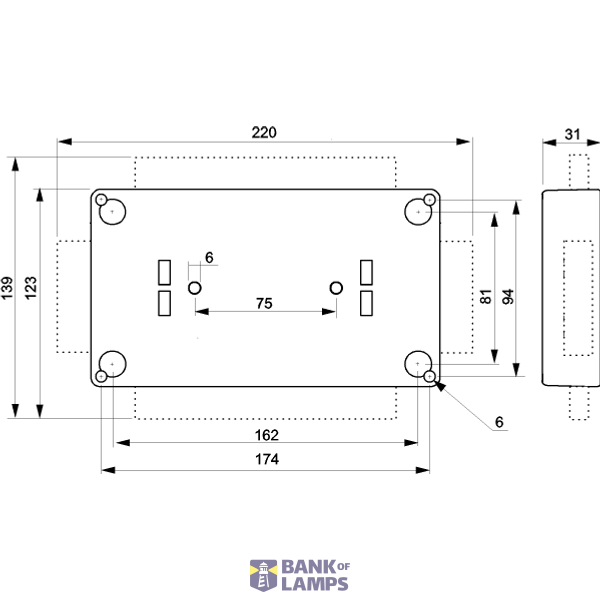

With the switchbox, a continuous single-phase supply is branched into an outlet for a one-pole switch and one lighting group. The switchbox can be fixed to an installation plate with two � 3�4 mm screws. The holes for screws are 75 mm apart.
