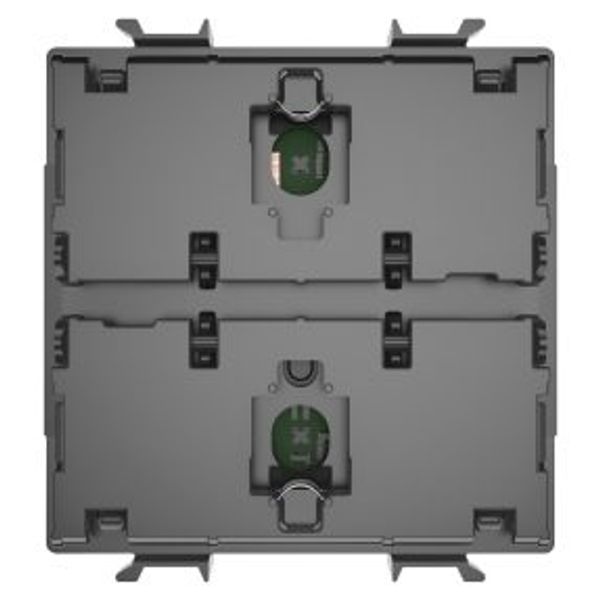

CONNCTED AXIAL DIMMER MODULE - ZIGBEE - 100-240 V ac 50/60 Hz - 4-150W 240 VAC - 2 MODULES - CHORUSMART
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
65,29 €
EAN: 8034035101076
MPN: GWA1222
Package: 1
Box: 6
Pallet: 468
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CONNCTED AXIAL DIMMER MODULE - ZIGBEE - 100-240 V ac 50/60 Hz - 4-150W 240 VAC - 2 MODULES - CHORUSMART |
| Brand | GEWISS |
| Categories |
Switches
|
| Harmonized System Code | 8536 5080 00 |
| Assembly arrangement | Modular device for domestic switching devices |
| Method of operation | Push button |
| Frequency | 50-60 Hz |
| Type of load | Universal |
| Nominal voltage | 230 V |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 44 mm |
| Device height | 44 mm |
| Device depth | 52 mm |
| Max. switching power LED | 150 W |
Packing details
| Packing level 1 | 8034035101076 |
| Packing level 2 | 8034035101076 |
| Packing level 3 | 8034035101076 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Halogen free | No |
| Connection type | Screwed terminal |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Other |
| Light value memory | Yes |
| Substation input | Yes |
| RAL-number (similar) | NA |
| Serial dimmer | No |
| Applicable with movement sensor | No |
| Applicable with transmission button | Yes |
| Applicable with infrared button | No |
| Applicable with presence indicator | No |
| Applicable with button | Yes |
| Applicable with time switch/timer | No |
| Control voltage | 0 V |
| Transparent | No |
| Surface finishing | Matt |
| Core cross section | 0-4 mm² |
| Number of modules (module system) | 2 |
| IFTTT support available | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Min. depth of built-in installation box | 47 mm |
| App control via Bluetooth | No |
| Nominal power resistive load | 100-500 W |
| Nominal power inductive load | 4-150 VA |
| Nominal power capacitive load | NA VA |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Downloads
Description
Connected SMART HOME - The connected system, based on the Zigbee wireless protocol, offers a full range of solutions for smart homes and small offices that are suitable for both new buildings and renovations. It enables you to control safety, comfort and consumption, through a unique user experience, using the Home Gateway APP and EGO Smart plates. The system integrates with the Google Home IoT platforms, Amazon Alexa and IFTTT, and all functions can be controlled with Google and Alexa voice assistants.
