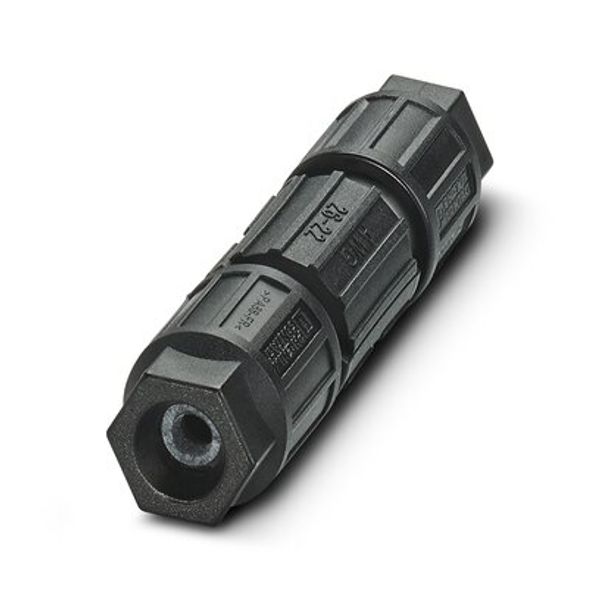

Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors image 1
Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors image 2
Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors image 3
Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors thumbnail 1
Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors thumbnail 2
Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors thumbnail 3
Phoenix Contact

Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors

Order only
Price (excl. VAT):
5,75 € per pcs
This price is valid until 24.12.25
EAN: 4017918925185
MPN: 1641879
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Q 0,34/4IDC/16-16KU-KU BK - Conductor connectors
Brand Phoenix Contact
Categories Plug-in Connectors
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 6990 00
Locking mechanism None
Rated current 5 A
Rated voltage 125 V
Number of poles 4
Length 70 mm
Degree of protection (IP) IP65

Packing details

Packing level 1 4017918925185, 4017918925185

Other Technical data

Width 16.3 mm
Halogen free No
Height 16.3 mm
With strain relief Yes
Housing material Other
Cable diameter 3.5-6 mm
Surface treatment contacts Other
Pollution degree 0
Mechanical coding No
Rated surge voltage 2.5 kV
Continuity resistor 0.005 mOhm
Number of connections per pole 1
Colour coding/contact insert Black
Fire load 0 kWh
Max. continuous temperature resistance contact part 0 °C
Max. continuous temperature resistance strain relief 0 °C

Description

Conductor connectors, QUICKON connection, 0.14 mm² ... 0.34 mm², 125 V, 5 A, black, external cable diameter: 3.5 mm ... 6 mm, QUICKON fast connection
