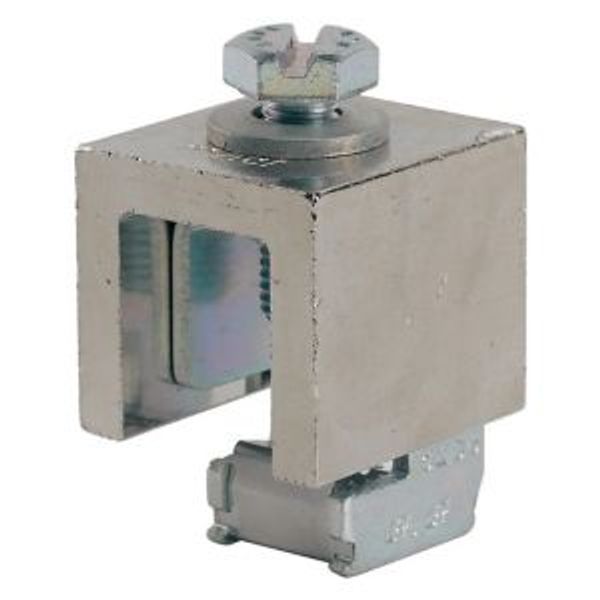

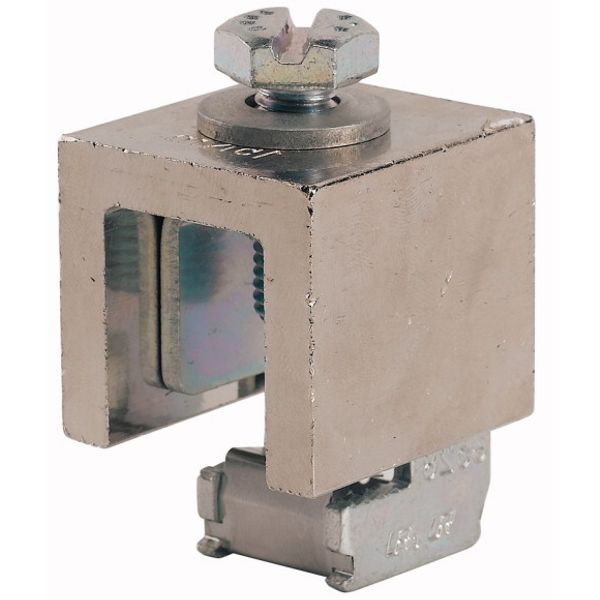

Conductor connection terminal M10 for 10mm
Order only
Price (excl. VAT):
24,77 €
EAN: 4015081351411
MPN: 138361
Package: 1
Box: 6
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Conductor connection terminal M10 for 10mm |
| Brand | EATON |
| Categories |
Busbar Systems and Accessories
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Max. rated operation current Ie | 630 A |
Packing details
| Packing level 1 | 4015081351411 |
| Packing level 2 | 9008790230646 |
Other Technical data
| Suitable for | Flat rail |
| Max. conductor cross section | 0 mm² |
| Width clamp | 38 mm |
| Busbar width | 0 mm |
| Busbar thickness | 10 mm |
| Suitable for strip conductor connection | No |
| Suitable for round conductor connection | Yes |
| Suitable for sector conductor connection | No |
Description
Universal conductor connection terminal, cable lugs M10, 630A, can be used for all 10 mm thick flat busbars, double T profile, width=38mm, termination space WxH=M10x10 bolt mm, with integrated retaining spring, with open terminal chamber and captive fixing screw, can be used with
