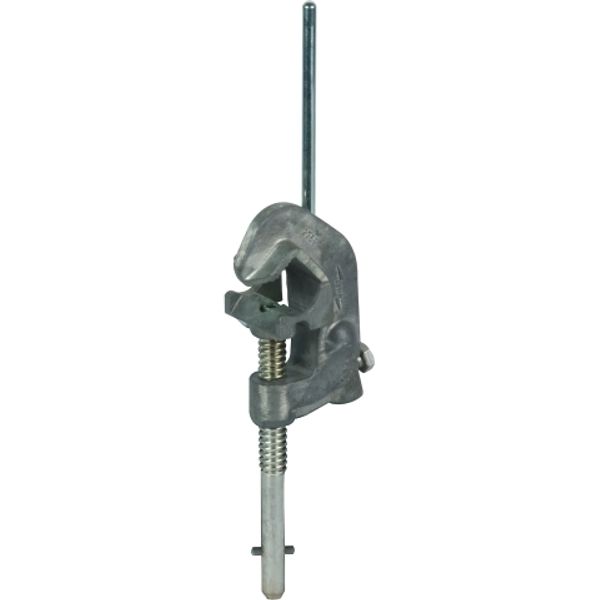

Conductor clamp with prod for D 4-40mm with long T pin shaft DB Mat. N

Order only

Price (excl. VAT):

394,52 €

This price is valid until 30.06.26

EAN: 4013364006072

MPN: 784352

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Conductor clamp with prod for D 4-40mm with long T pin shaft DB Mat. N
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Connection type	Power cable for overhead lines
Clamping range	4-40 mm

Packing level 1

4013364006072, 4013364006072

Application	Phase-side
Anti-rotation protection	Yes
Admission of the activation rod	Spindle with cross pin

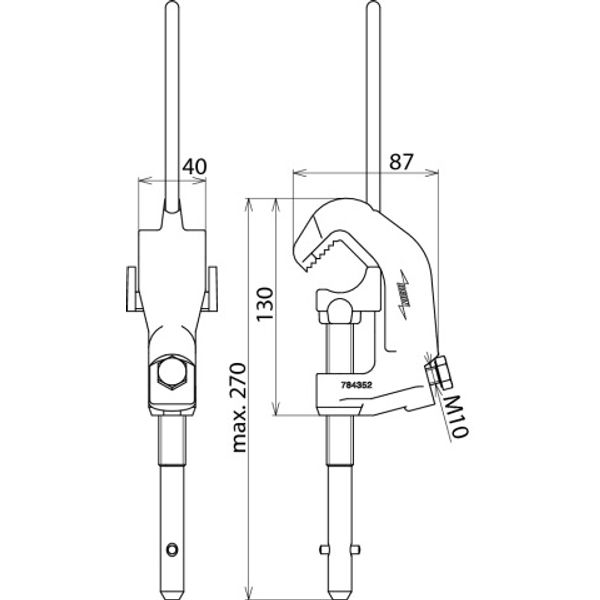

Product data sheet Dimensioned drawing Deep link REACH

Line clamp in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting supply and traction current lines.
