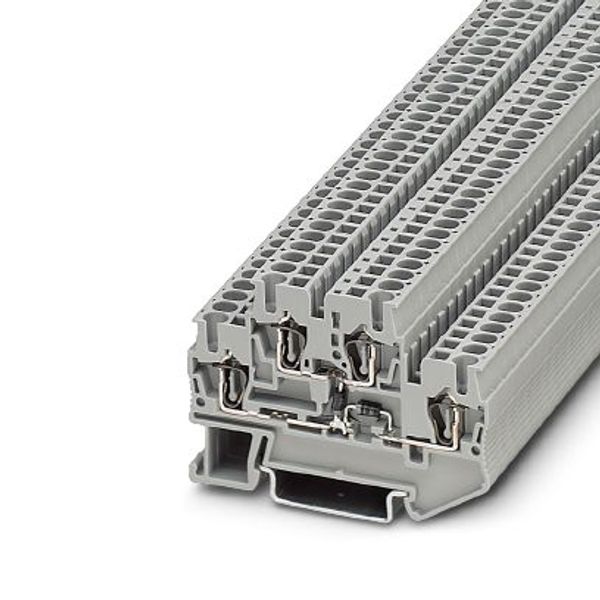

STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block image 1
STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block image 2
STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block image 3
STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block thumbnail 1
STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block thumbnail 2
STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block thumbnail 3
Phoenix Contact

STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block

Order only
Price (excl. VAT):
4,68 € per pcs
This price is valid until 24.12.25
EAN: 4017918183066
MPN: 3031584
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name STTB 2,5-2DIO/O-UL/UR-UL - Component terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin PL
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Width 5.15 mm
Height 67.584 mm
Depth 45.85 mm
Rated voltage 250 V
Operating temperature -60-105 °C
Closing plate required Yes
Type of electrical connection 1 Spring clamp connection
Number of levels 2
Number of clamp positions per level 0
Connectable conductor cross section solid-core 0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-2.5 mm²
Rated current In 0 A

Packing details

Packing level 1 4017918183066, 4017918183066

Other Technical data

Inflammability class of insulation material according to with UL94 V0

Description

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 250 V, nominal current: 0.5 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray
