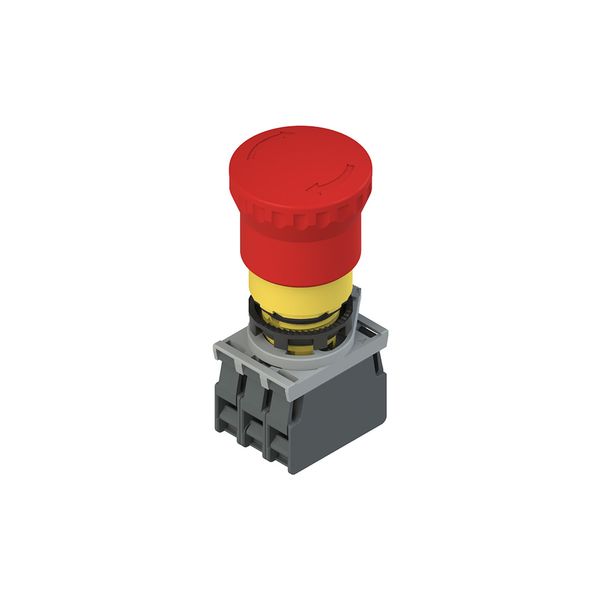

Complete unit with emergency pushbutton, fixing adapter and contacts

Order only

Price (excl. VAT):

22,67 €

This price is valid until next price list or while stock lasts

EAN: 8018851232251

MPN: E2 AC-DXBC1000

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Complete unit with emergency pushbutton, fixing adapter and contacts
Brand	Pizzato Elettrica
Categories	Emergency stop buttons
Harmonized System Code	8536 9095 00
ETIM	EC002034
Unlocking method	Turn-release

Packing details

Packing level 1

8018851232251

Other Technical data

Hole diameter	22 mm
Diameter cap	40 mm
Connection type auxiliary circuit	Screw connection
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	1

Downloads

Product data sheet

Description

Complete unit with emergency pushbutton, fixing adapter and contacts, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Composition: (1x) E2 1PERZ4531: Turn to release emergency pushbutton; (1x) E2 1BAC11: Fixing adpter for E2 CP contact block or for E2 LP LED holder; (2x) E2 CP01G2V1: Base fixing contact block E2 series, 1NC slow action; (1x) E2 CP10G2V1: Base fixing contact block E2 series, 1NO slow action.
