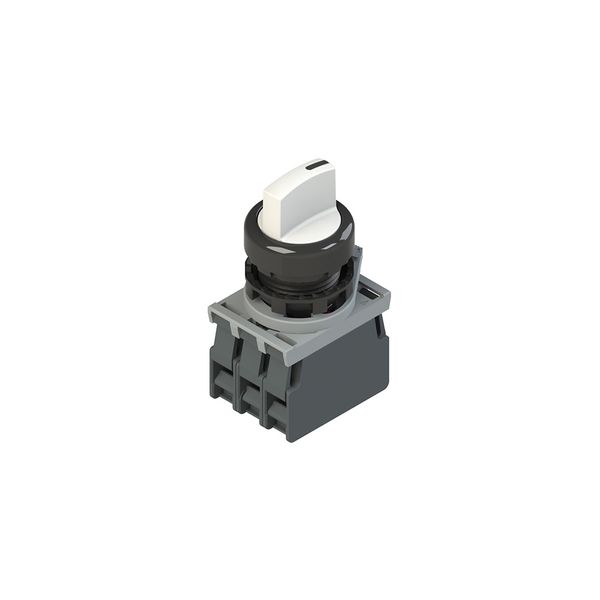

Complete unit with illuminated selector, fixing adapter and contacts

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

20,67 €

This price is valid until 24.12.25

EAN: 8018851201158

MPN: E2 AC-DXBC1806

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Complete unit with illuminated selector, fixing adapter and contacts
Brand	Pizzato Elettrica
Categories	Control Switches
Colour button	White
Number of switch positions	3
Type of electric connection	Screw connection

Packing details

Packing level 1

8018851201158

Other Technical data

Hole diameter	22 mm
Suitable for illumination	Yes
Supply voltage	12-30 V
Degree of protection (IP)	IP67
With light source	Yes
Material front ring	Plastic
With front ring	Yes
Type of control element	Rocker lever
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1

Downloads

Product data sheet

Description

Complete unit with illuminated selector, fixing adapter and contacts, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Composition: (1x) E2 1SL13ACH21AB: Illuminated short handle selector, 3 positions white ; with marking; (1x) E2 1BAC11: Fixing adpter for E2 CP contact block or for E2 LP LED holder; (1x) E2 CP10G2V1: Base fixing contact block E2 series, 1NO slow action; (1x) E2 LP1A2V1: Panel fixing LED holder, white; (1x) E2 CP01G2V1: Base fixing contact block E2 series, 1NC slow action.
