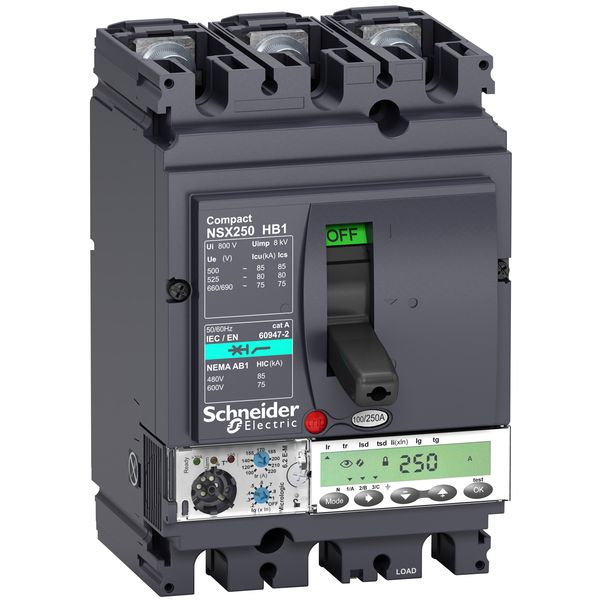

COMPACT NSX100HB1 6.2 EM 80A 3P3D
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2 241,33 €
EAN: 3606480479625
MPN: LV433317
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | COMPACT NSX100HB1 6.2 EM 80A 3P3D |
| Brand | Schneider Electric |
| Categories |
Motor protection circuit-breakers
|
| Country of origin | FR |
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 80 A |
| Number of poles | 3 |
| Rated operating voltage | 690 V |
| Overload release current setting | 37-96 A |
| Degree of protection (IP) | IP40 |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 0 kA |
| Adjustment range undelayed short-circuit release | 1200 A |
Packing details
| Packing level 1 | 3606480479625 |
Other Technical data
| Width | 105 mm |
| Height | 161 mm |
| Depth | 86 mm |
| Rated operation power at AC-3, 400 V | 0 kW |
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| With thermal protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Other |
| Switch off technique | Electronic |
| Rated operation power at AC-3, 230 V | 0 kW |
| Phase failure sensitive | Yes |
| Device construction | Built-in device fixed built-in technique |
Description
This Compact NSX100HB1 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 80A rating electronic Micrologic 6.2 E-M trip unit, with an adjustable ground-fault protection (with OFF position). Micrologic 6.2 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. Micrologic 6.2 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100HB1 is part of Schneider Electric EcoStruxure Power architecture.
