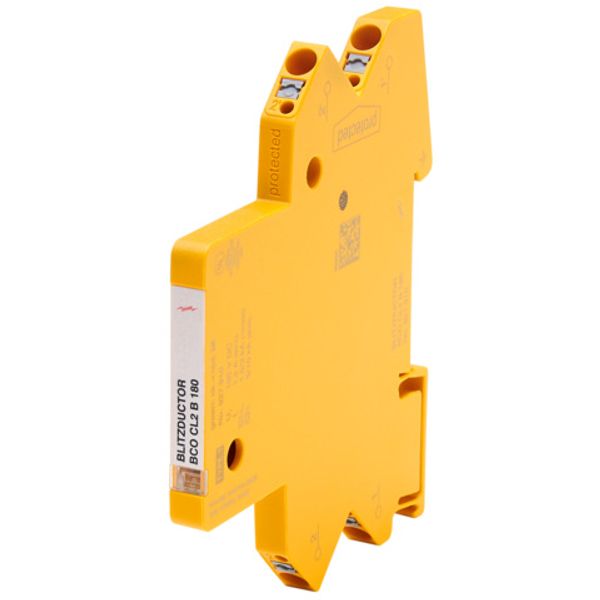

Compact arrester for 2 single cores BLITZDUCTORconnect w. fault indica

Name: Compact arrester for 2 single cores BLITZDUCTORconnect w. fault indica
Brand: Dehn
Price: 70.170 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

70,17 €

This price is valid until 31.12.25

EAN: 4013364411739

MPN: 927910

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Compact arrester for 2 single cores BLITZDUCTORconnect w. fault indica
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3010 00
Mounting method	DIN rail (top hat rail) 35 mm
Connection 1	Clamp
Signalling at the device	Optic

Packing details

Packing level 1

4013364411739, 4013364411739

Other Technical data

Lightning impulse current (10/350 µs)	3 kA
Limiting frequency	300 MHz
Max. continuous voltage AC	127 V
Nominal discharge surge current (8/20)	10 kA
Nominal load current	1.2 A
Nominal voltage DC	180 V
Voltage protection level core/core	1100 V
Voltage protection level core/earth	800 V
Max. continuous voltage DC	180 V
Pro-active thermo-control	Yes

Downloads

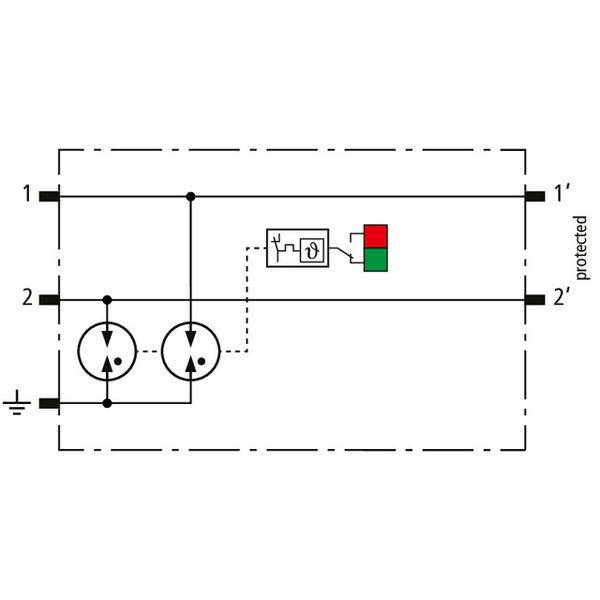

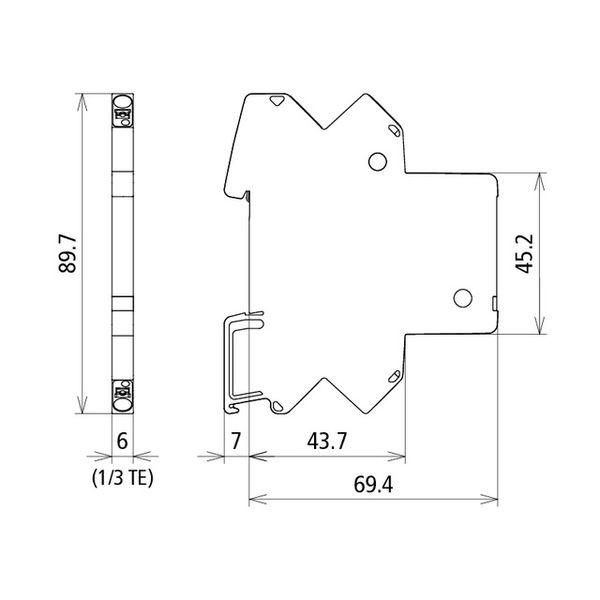

Product data sheet Dimensioned drawing Circuit diagram

Description

Space-saving, compact lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables.
