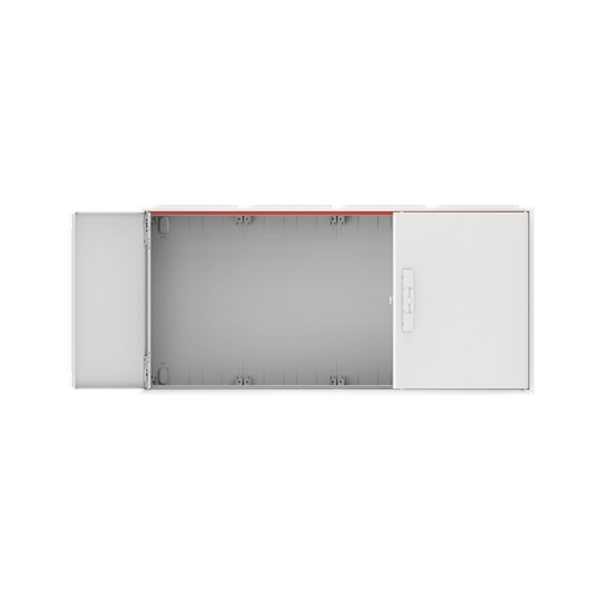

A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm image 1

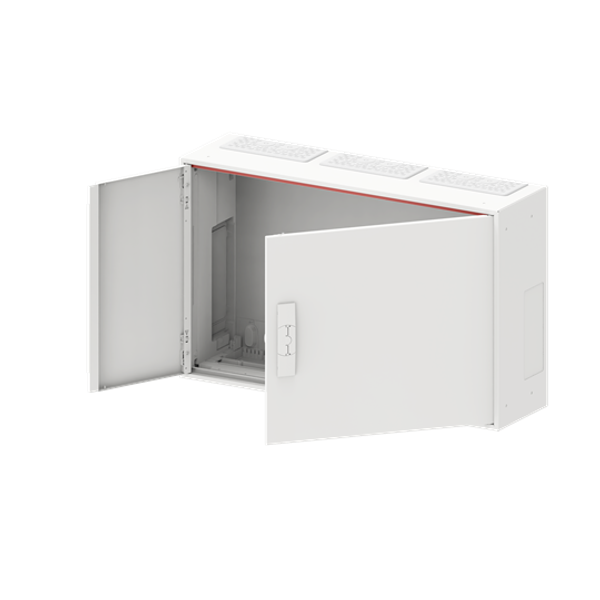

A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm image 2

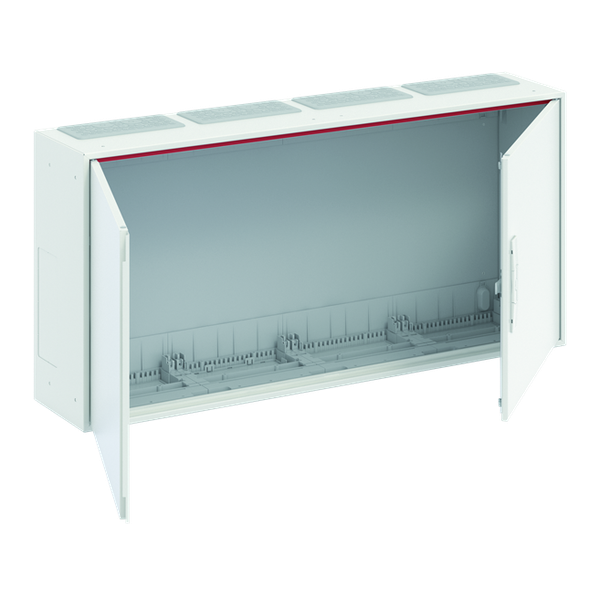

MD01 image 3

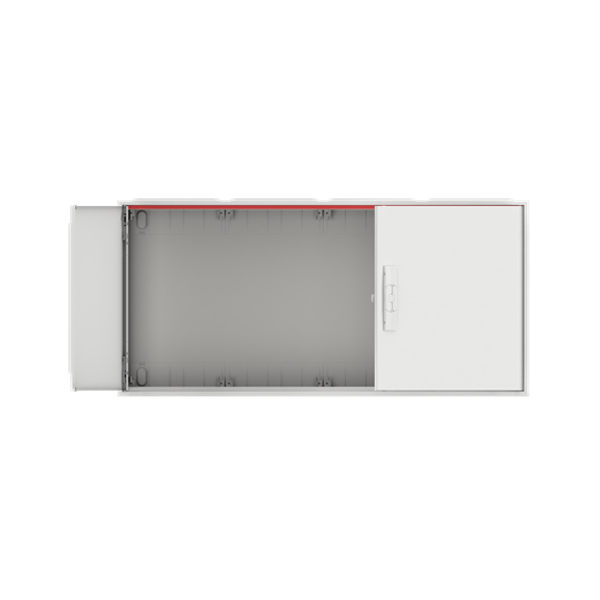

MD99 image 4

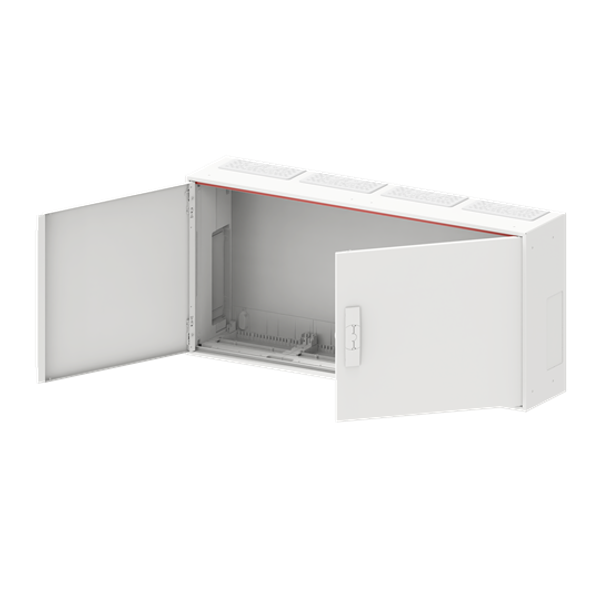

MD99 image 5

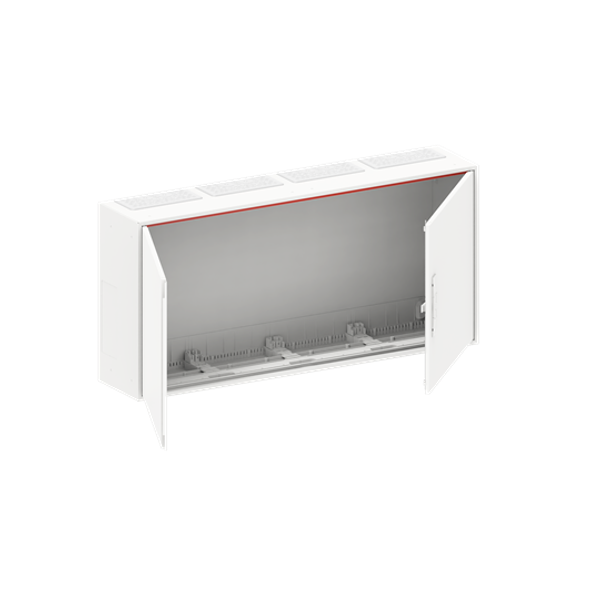

MD99 image 6
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm image 7
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm image 8
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm thumbnail 1
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm thumbnail 2
MD01 thumbnail 3
MD99 thumbnail 4
MD99 thumbnail 5
MD99 thumbnail 6
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm thumbnail 7
A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm thumbnail 8
ABB

A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm

Order only
Price (excl. VAT):
335,62 € per pcs
This price is valid until 31.12.30
EAN: 4011617520139
MPN: 2CPX052013R9999
Package: 1
Pallet: 10
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name A43 ComfortLine A Wall-mounting cabinet, Surface mounted/recessed mounted/partially recessed mounted, 144 SU, Isolated (Class II), IP44, Field Width: 4, Rows: 3, 500 mm x 1050 mm x 215 mm
Brand ABB
Categories Cabinet Enclosures
Harmonized System Code 8538 1000 00
Circuit integrity None
Impact strength IK07
Degree of protection (IP) IP44

Packing details

Packing level 1 4011617520139
Packing level 2 4011617520139

Other Technical data

Mounting method Surface mounted (plaster)
Protection class II
Colour White
Width 1050 mm
Height 500 mm
Depth 215 mm
RAL-number 9016
With mounting plate No
Surface protection Powder coating
Built-in depth 190 mm
Number of rows 3
Type of cover Door
Number of conduit inlets 204
Extension possible Yes
Inner depth 207 mm
Housing material Steel plate/plastic
Width in number of modular spacings 48
Suitable for outdoor use No
Number of modules 144
Type of door Double
Transparent cover/door No
With lock Yes
Suitable for lightning protection Yes
Nominal current (In) 250 A
Material plate thickness cabinet 0 mm
Material plate thickness door/cover 0.9 mm
Cover model With notch
Number of openings for flange plates 4
Degree of protection (NEMA) Other
Cover with overpressure release No

Downloads

Others Declaration RoHS Deep link REACH Declaration DOC CE (Declaration of conformity CE) Product data sheet

Description

A33 Wall Cabinet 3PW3R PC2 IP44
