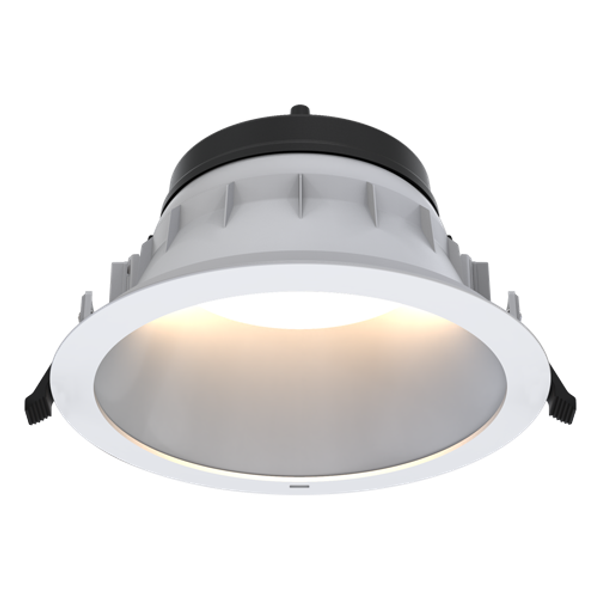

Comfort EVO 1 Dual Output CCT Downlight Switch Dim
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
141,92 €
EAN: 5056144254651
MPN: ACOM1/1/DD1
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Comfort EVO 1 Dual Output CCT Downlight Switch Dim |
| Brand | Ansell Lighting |
| Categories |
Luminaires
|
| Width | 145 mm |
| Colour rendering index CRI | 80-89 |
| Length | 155 mm |
| Height/depth | 62 mm |
| Degree of protection (IP) | IP44 |
| Beam angle | Extreme wide beam >80° |
| Max. system power | 13 W |
| Rated luminous flux according to IEC 62722-2-1 | 1800 lm |
| Luminaire efficacy | 130 lm/W |
Packing details
| Packing level 1 | 5056144254651, 5056144254651 |
Other Technical data
| Protection class | II |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | No |
| Built-in width | 145 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 155 mm |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| With control gear | Yes |
| Suitable for surface mounting | No |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 60000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 23 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 50 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | Positions |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 62 mm |
| Power factor | 0.8 |
