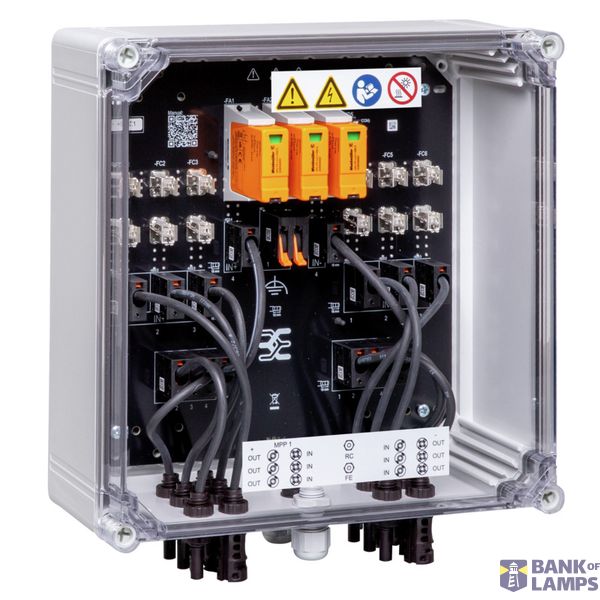

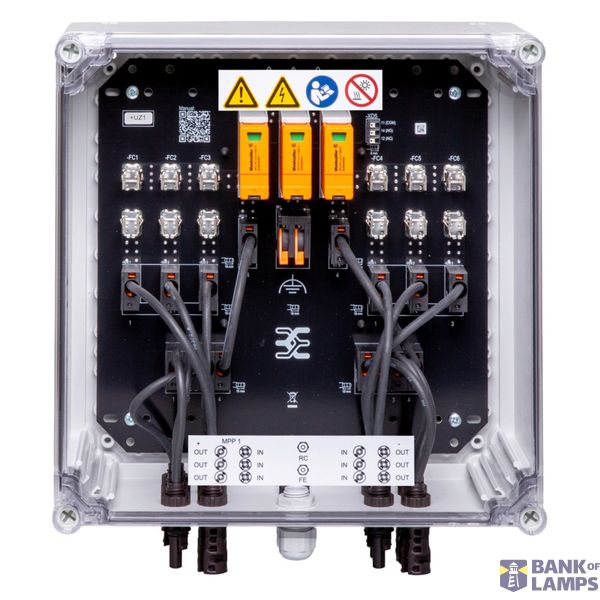

Combiner Box (Photovoltaik), PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outp
Order only
Price (excl. VAT):
Price by request
EAN: 4099986642058
MPN: 2925830000
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Combiner Box (Photovoltaik), PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outp |
| Brand | Weidmüller |
| Categories |
Solar Combiner Boxes
|
| Country of origin* | TN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC003857 |
| Colour | White |
| Width | 300 mm |
| Height | 340 mm |
| Depth | 132 mm |
| Max. output current | 0 A |
| Type of inlet | Other |
| Operating temperature | -40-50 °C |
| Material | Plastic |
| Category type 1 | Yes |
| Category type 2 | Yes |
| Category type 3 | No |
| Impact strength | IK08 |
| Degree of protection (IP) | IP65 |
| For fuse size | 10x38 mm |
| Fuse type | gPV (photovoltaic protection) |
| String protection | 2-pole |
| Fuse size input | 15 A |
Packing details
| Packing level 1 | 4099986642058, 4099986642058 |
Description
Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20633 outputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 346x300x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
