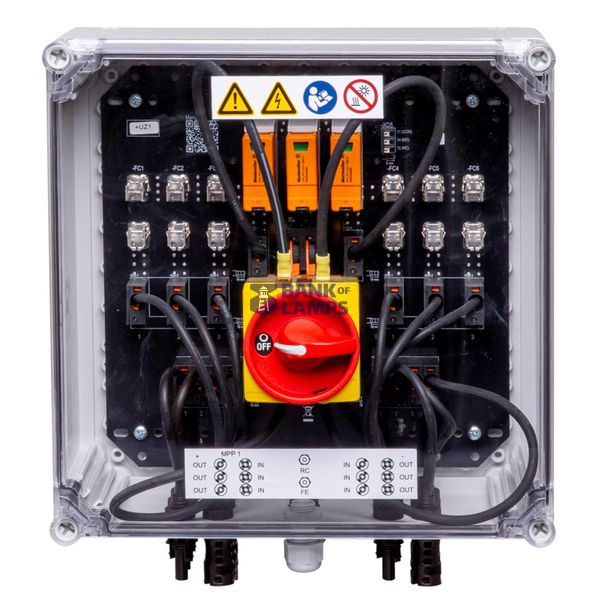

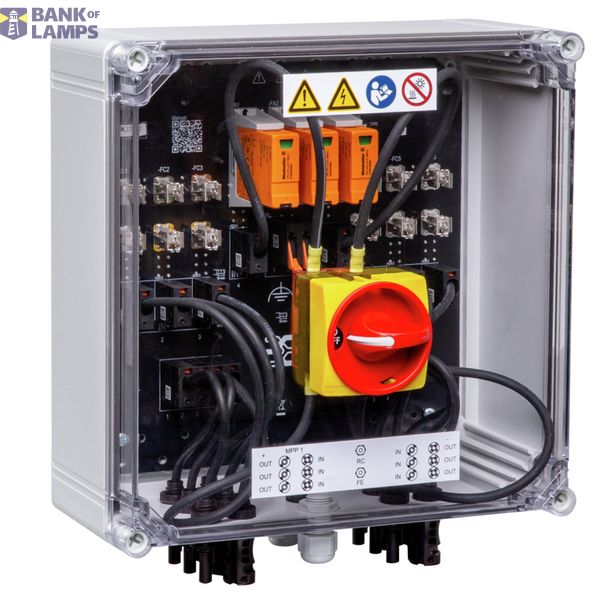

Combiner Box (Photovoltaik), PV Next, 1000 V, 1 MPP, 3 Inputs / 3 Outp
Order only
Price (excl. VAT):
Price by request
EAN: 4099986642072
MPN: 2925850000
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Combiner Box (Photovoltaik), PV Next, 1000 V, 1 MPP, 3 Inputs / 3 Outp |
| Brand | Weidmüller |
| Categories |
Solar Combiner Boxes
|
| Country of origin* | TN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC003857 |
| Colour | White |
| Width | 300 mm |
| Height | 340 mm |
| Depth | 172 mm |
| Max. output current | 0 A |
| Type of inlet | Other |
| Operating temperature | -40-45 °C |
| Material | Plastic |
| Category type 1 | Yes |
| Category type 2 | Yes |
| Category type 3 | No |
| Impact strength | IK08 |
| Degree of protection (IP) | IP65 |
| For fuse size | 10x38 mm |
| Fuse type | gPV (photovoltaic protection) |
| String protection | 2-pole |
Packing details
| Packing level 1 | 4099986642072, 4099986642072 |
Description
Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20633 outputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)With lockable DC load break switch for safe separation of the string lines according to DIN EN IEC 60947-3Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 346x300x170 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
