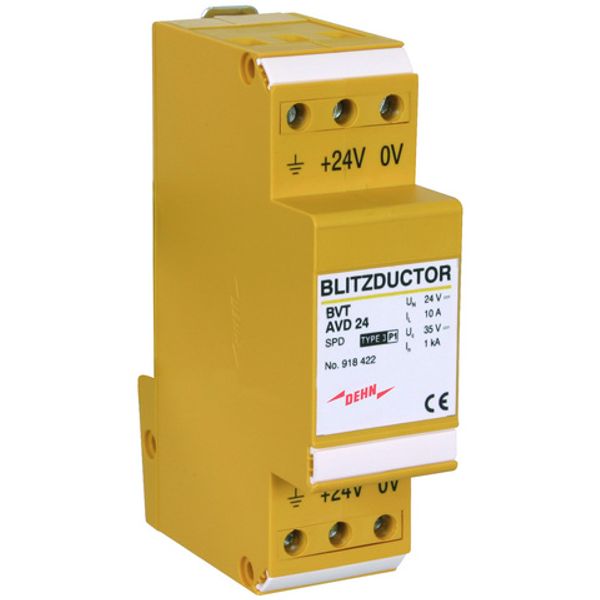

Combined arrester BLITZDUCTOR VT for d.c. voltage supplies
Order only
Price (excl. VAT):
189,67 €
EAN: 4013364149267
MPN: 918422
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Combined arrester BLITZDUCTOR VT for d.c. voltage supplies |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Connection 1 | Screw terminal |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 24 V |
Packing details
| Packing level 1 | 4013364149267, 4013364149267 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Lightning impulse current (10/350 µs) | 2 kA |
| Number of conductors (without earthing) | 2 |
| Nominal discharge surge current (8/20) | 2 kA |
| Nominal load current | 10 A |
| Voltage protection level core/core | 50 V |
| Voltage protection level core/earth | 450 V |
| Max. continuous voltage DC | 35 V |

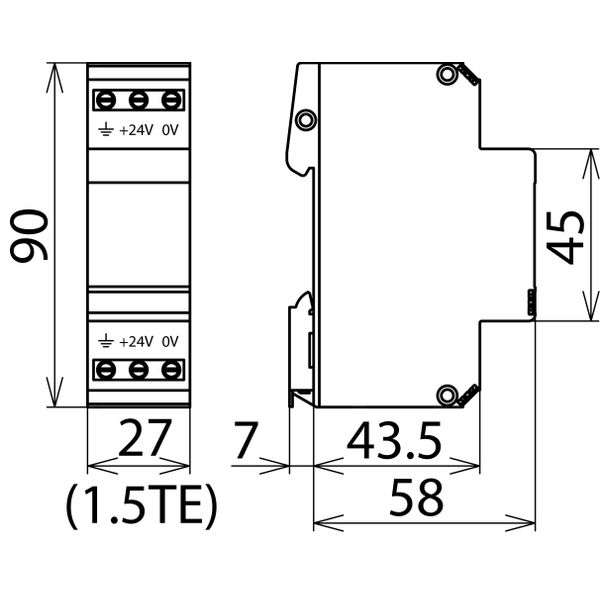

| Assembly width | 27 mm |
| Earthing via | DIN rail (top hat rail) |
Downloads
Description
Surge arresters with improved voltage protection levels for EMC protection of electronic components with d.c. voltage supply. Optimally harmonised with Siemens PLCs. Since a unipolar diode is used, the polarity of the operating voltage must be observed.
