V50-0-385 CombiController V50 plug-in arrester 385V
Order only
Price (excl. VAT):
52,39 €
per pcs
EAN: 4012196334681
MPN: 5093510
Package: 1
Box: 30
Pallet: 4320
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | V50-0-385 CombiController V50 plug-in arrester 385V |
| Brand | OBO Bettermann |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Lightning impulse current (10/350 µs) | 12.5 kA |
| Voltage protection level | 1.7 kV |
| Max. continuous voltage AC | 385 V |
| Nominal voltage AC | 350 V |
| Voltage protection level L-N | 1.7 kV |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4012196396764 |
| Packing level 2 | 4012196396771 |
| Packing level 3 | 4012197070502 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 1 |

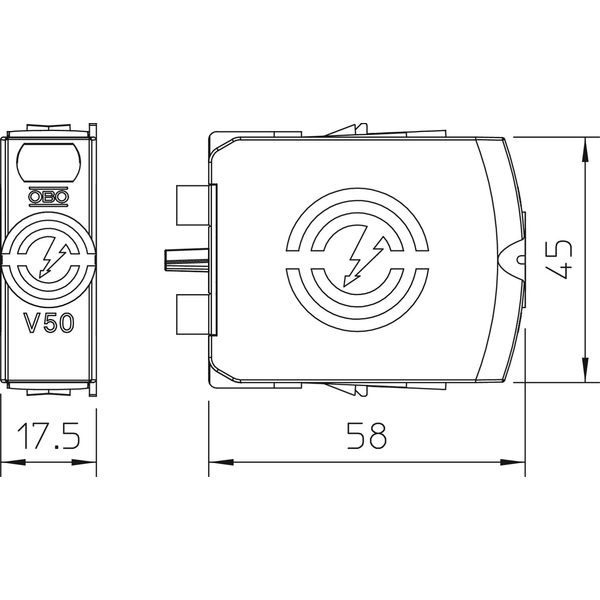

| Construction size | 1 modular spacing |
| Remote signalling | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
| Voltage switching spark gap technology | No |
| Overcurrent protected voltage tapping | No |
Downloads
Description
Augšējā daļa, zibensstrāvas kombinētais novadītājs, tips 1+2
• zibensaizsardzības potenciālu izlīdzinājumam atb VDE 0185-305 (IEC 62305)
• zibensizlādes strāvas caurlaides spēja 12,5 kA (10/350) katram polam
• modulārs, iespraužams novadītājs ar dinamisku atdalošo iekārtu un optisko statusa indikatoru
• aiztures funkcija ar aizsardzību pret vibrācijām un sprieguma kodēšanu
• plastmasa atb. UL 94 V-0
