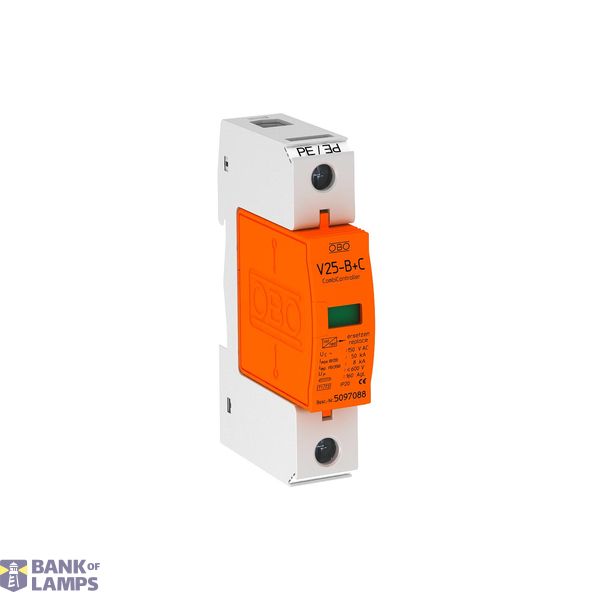

V25-B+C 1-150 5094401 ARRESTER COMBINED V25 V25-B+C 1-150 image 1

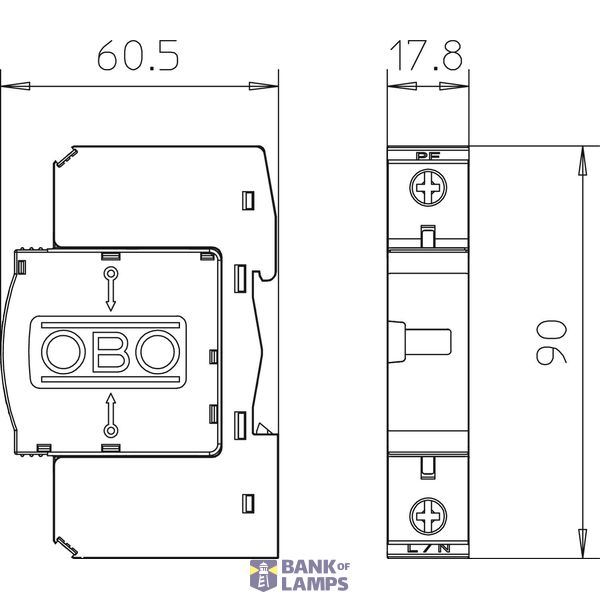

V25-B+C 1-150 5094401 ARRESTER COMBINED V25 V25-B+C 1-150 image 2
V25-B+C 1-150 5094401 ARRESTER COMBINED V25 V25-B+C 1-150 thumbnail 1
V25-B+C 1-150 5094401 ARRESTER COMBINED V25 V25-B+C 1-150 thumbnail 2
OBO Bettermann

CombiController V25 1-polīga versija 150V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name V25-B+C 1-150 5094401 ARRESTER COMBINED V25 V25-B+C 1-150
Brand OBO Bettermann
Country of origin* HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 3030 00
ETIM EC001457
Lightning impulse current (10/350 µs) 8 kA
Voltage protection level 0.6 kV
Max. continuous voltage AC 150 V
Nominal voltage AC 120 V
Max. continuous voltage DC 200 V
Degree of protection (IP) IP20

Packing details

Packing level 1 4012195461265
Packing level 2 4012195461272
Packing level 3 4012197071165

Other Technical data

Number of poles 1
Construction size 1 modular spacing
Remote signalling No
Signalling at the device Optic
Integrated backup fuse No
Max. conductor cross section solid (solid, stranded) 35 mm²
Energy-coordinated protection effect with regard to the terminal equipment No
System configuration DC No
System configuration IT No
System configuration TN Yes
System configuration TN-C Yes
System configuration TN-S Yes
System configuration TT Yes
System configuration other Yes
System configuration TN-C-S Yes
Voltage switching spark gap technology No
Overcurrent protected voltage tapping No

Description

Kombinēts novadītājs, zibens un pārsprieguma novadītājs, tips 1+2 • Zibensaizsardzības potenciālu izlīdzinājumam atb. VDE 0185-305 (IEC 62305) • Zibensizlādes strāvas novadīšanas spēja 7 kA (10/350) katram polam, bet kopā līdz 25 kA (10/350) • Novadītājs, iespraužams, ar dinamisku izolējošo iekārtu un optisku funkciju indikatoru • Jaudīga varistoru tehnoloģija Pielietojums: ēkās, kurām strāva pienāk pa gaisa vadu līniju vai kurām ir zibensizlādes risks.
