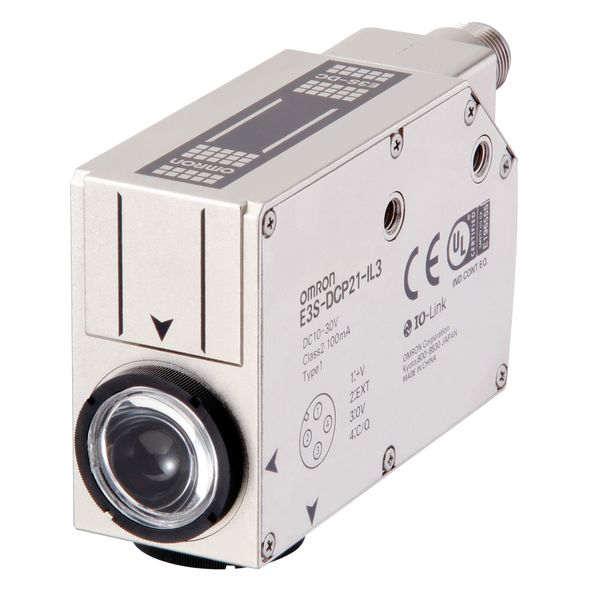

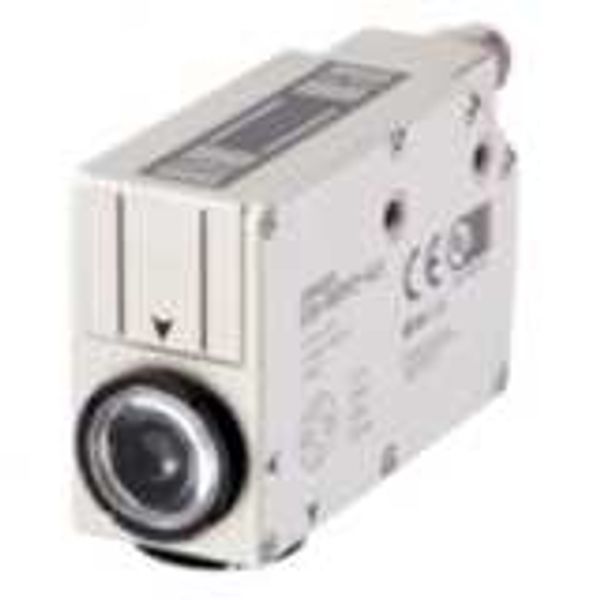

Colour-mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50Âµ E3S 7114C

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

168,70 €

This price is valid until 24.12.25

EAN: 4548583819061

MPN: E3S-DCP21-IL3

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Colour-mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50Âµ E3S 7114C
Brand	Omron
Categories	Contrast Sensors
Country of origin	NL
Harmonized System Code	8541 4900 00
Voltage type	DC
Max. output current	100 mA
Switching frequency	20 Hz
Type of electric connection	Connector M12
Type of switching output	PNP
Type of switch function	Programmable/configurable
Rated control supply voltage at DC	10-30 V
No-load current	40 mA
Type of light	Multi-coloured LED
Light dot	4 mm²
Nominal operating distance	10 mm

Packing level 1

4548583819061, 4548583819061

Housing material	Zinc
Ambient temperature	-10-55 °C
With time function	Yes
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
With blanking function	No
Operation agent-safety class	Safety class 2
Setting procedure	Teach-In
Construction type housing	Cuboid
Laser protection class	Other
With fibre optics connection	No
With exchange lens	Yes
Material of optical surface	Plastic
Material of cable sheath	Other
Material fibre optics core	Other
Degree of protection (IP)	IP67
Analogue output 0 V ... 10 V	No
Analogue output 0 mA ... 20 mA	No
Analogue output -10 V ... +10 V	No
Analogue output 4 mA ... 20 mA	No
Width sensor	30 mm
Height of sensor	56.9 mm
Length of sensor	83.6 mm
Degree of protection (NEMA)	Other

Product data sheet

Colour-mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, PNP, IO-Link COM3, M12 connector
