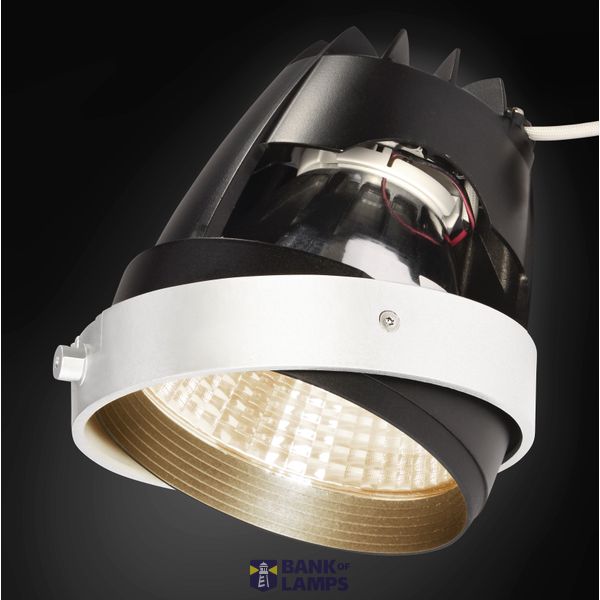

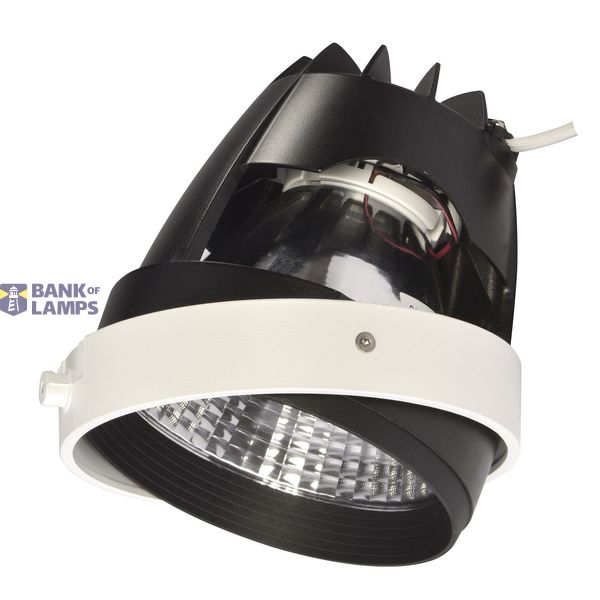

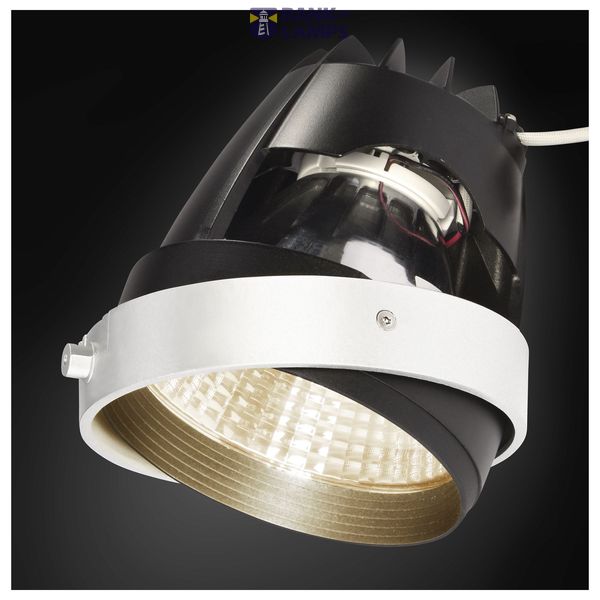

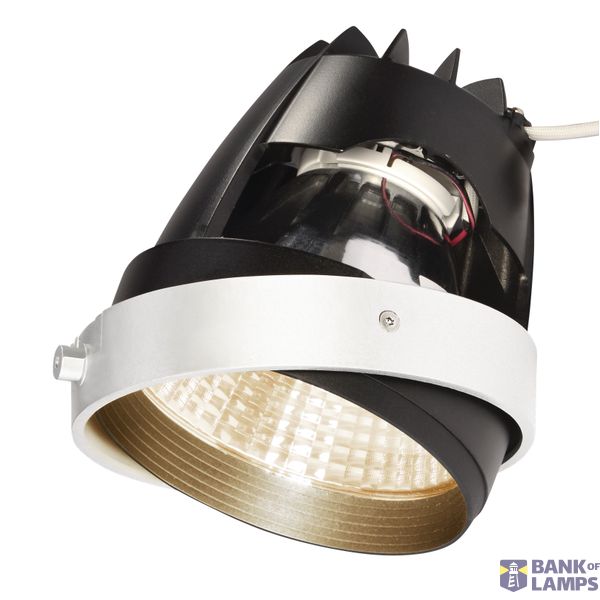

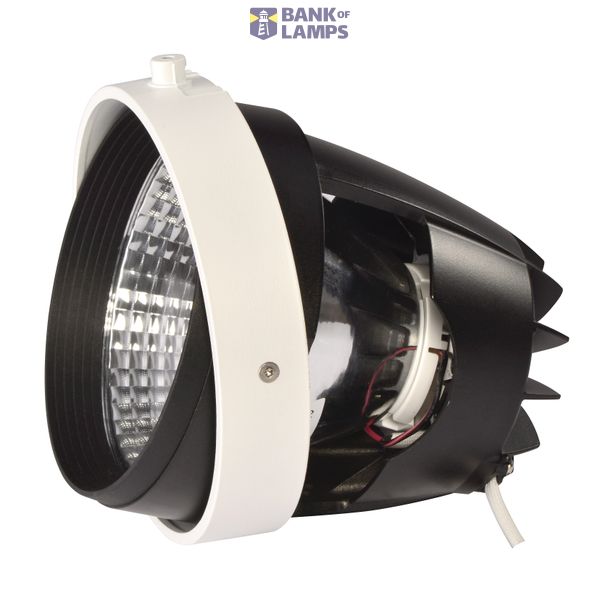

COB LED MODULE, matt white, 70°, CRI90+, 3200K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | COB LED MODULE, matt white, 70°, CRI90+, 3200K |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC001744 |

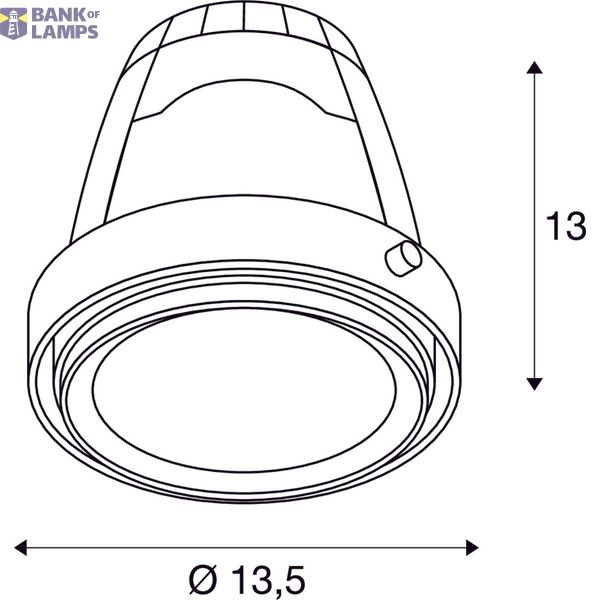

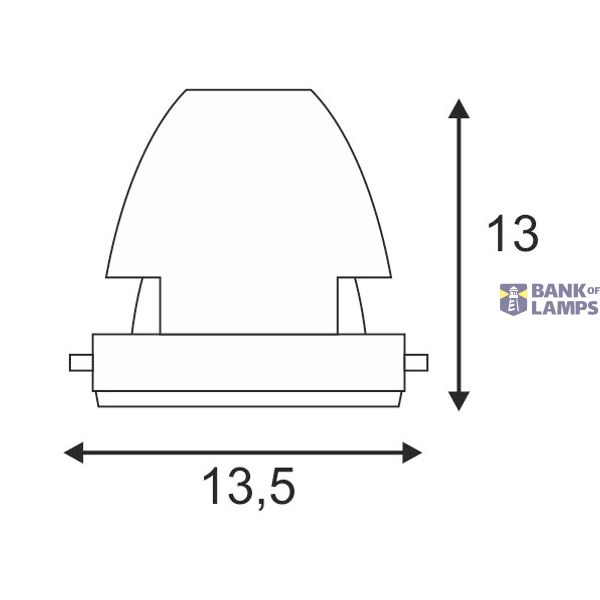

| Width | 135 mm |
| Length | 130 mm |
| Height/depth | 135 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP20 |

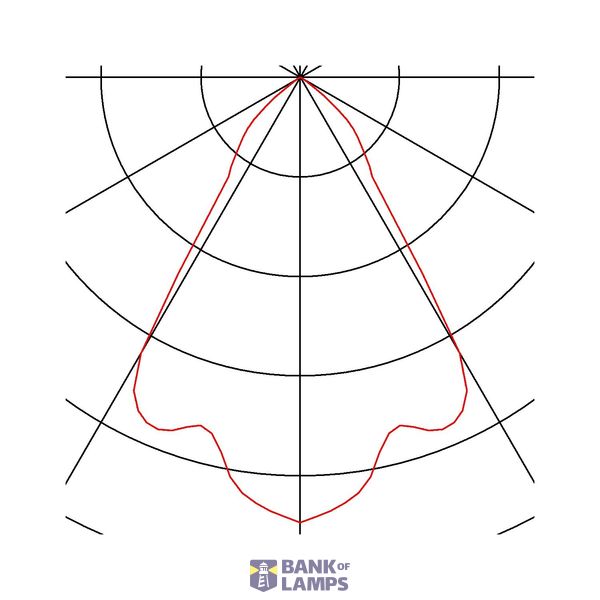

| Beam angle | Wide beam 41-80° |
| Max. system power | 0 W |
| Rated luminous flux according to IEC 62722-2-1 | 1650 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 4024163176750 |
Other Technical data
| Protection class | III |
| Outer diameter | 135 mm |
| Reflector | High-gloss |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Colour housing | White |
| Surface protection | Lacquered |
| Voltage type | DC |
| With movement sensor | No |
| Type of control gear | Not required |
| Suitable for wall mounting | No |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Material cover | Glass transparent |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Luminous flux | 1650 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Reflector |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description
The COB LED Module was developed for use in AIXLIGHT PRO installation frames. This special product is suitable for lighting up baked goods. The warm-white COB LED module comes in white or silver-grey and is available in various beam angles. A LED driver with a constant current of 700 mA is needed for use. Not suitable for flat installation frames.
