COB LED MODUL for AIXLIGHT PRO mounting frame, 70°, matt wh.
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | COB LED MODUL for AIXLIGHT PRO mounting frame, 70°, matt wh. |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 4239 00 |
| ETIM | EC001744 |

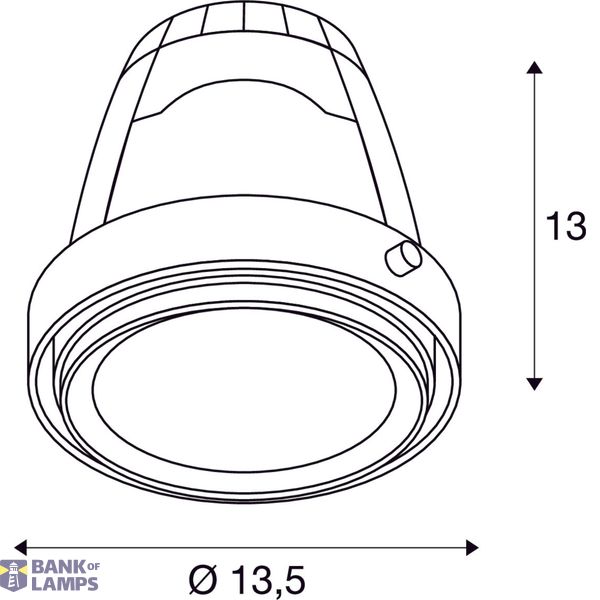

| Width | 135 mm |
| Length | 130 mm |
| Height/depth | 135 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP20 |

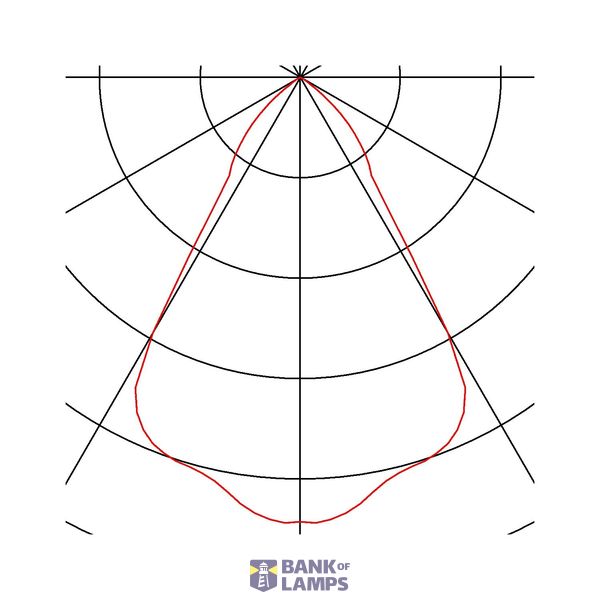

| Beam angle | Wide beam 41-80° |
| Max. system power | 0 W |
| Rated luminous flux according to IEC 62722-2-1 | 3500 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 4024163154215 |
Other Technical data
| Protection class | III |
| Outer diameter | 135 mm |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Colour housing | White |
| Surface protection | Lacquered |
| Voltage type | DC |
| With movement sensor | No |
| Type of control gear | Not required |
| Suitable for wall mounting | No |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Material cover | Glass transparent |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Luminous flux | 3500 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Reflector |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description

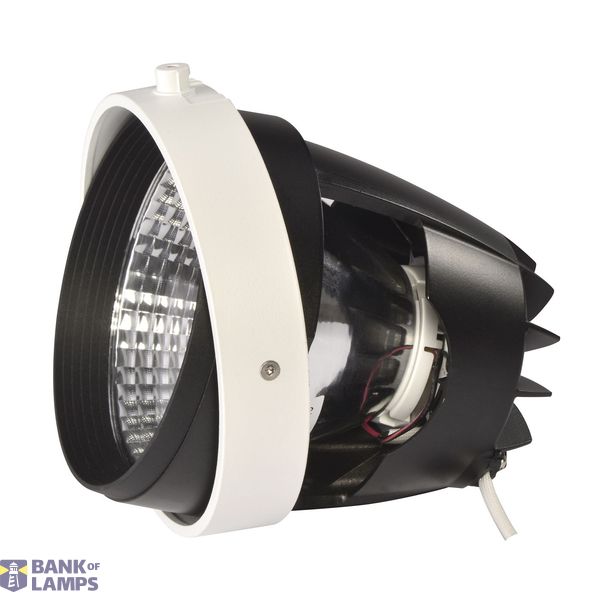

The COB LED Module was designed specifically for use in AIXLIGHT PRO installation frame. The warm white COB LED module is available in matt white or silver grey, and in various beam angles. Operation requires an LED driver with a constant current of 700mA, 1000mA, or 1050mA. Not suitable for flat installation frames.
