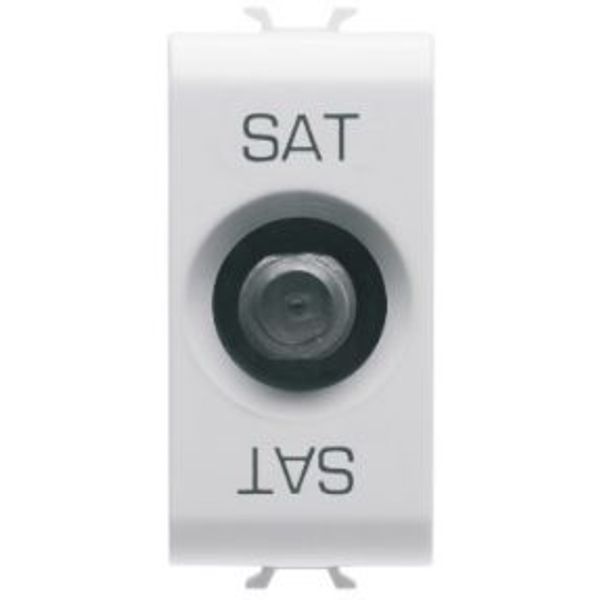

Coaxial Tv/sat Socket-outlet Class A Shielding, Female F Connector, FEEDTHROUGH 10 dB, 1 Module, Satin White, Chorusmart
Order only
EAN: 8034035075650
MPN: GW15373
Package: 1
Box: 24
Pallet: 2976
Price (excl. VAT)
17,67 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | COAXIAL TV/SAT SOCKET-OUTLET, CLASS A SHIELDING - FEMALE F CONNECTOR - FEEDTHROUGH 10 dB - 1 MODULE - SATIN WHITE - CHORUSMART |
| Brand | GEWISS |
| Categories |
TV Sockets
|
| Harmonized System Code | 8536 6910 00 |
| ETIM | EC000439 |
| Mounting method | Module frame |
| Model | Loop-through socket |
| Number of outlets | 1 |
| Type of fastening | Snap mounting (engagement) |
| Degree of protection (IP) | IP20 |
| Number of modules (module system) | 1 |
Packing details
| Packing level 1 | 8034035075650 |
| Packing level 2 | 8034035460319 |
| Packing level 3 | 8034035075650 |
Other Technical data
| Colour | White |
| Halogen free | No |
| Cover | None |
| Surface protection | Untreated |
| Frequency | 2400 MHz |
| Through loss at 860 MHz | 2 dB |
| Tap loss at 860 MHz | 10 dB |
| Material quality | Thermoplastic |
| Suitable for cable modem | No |
| Suitable for remote power supply | No |
| Material | Plastic |
| Tap loss at 2150 MHz | 10.5 dB |
| Through loss at 2150 MHz | 3 dB |
| RAL-number (similar) | 9003 |
| Surface finishing | Matt |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 38.6 mm |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Downloads
Description
CHORUSMART - Domestic range Satin white modular devices - The CHORUSMART modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.Colours and finishes: satin white, distinctive and elegant.Unlimited functions in reduced spaces: the CHORUSMART range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
