CN 18L50 730 RSC CL1 W3 ANT - LED lighting column
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 3607640641258
MPN: 96679084
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CN 18L50 730 RSC CL1 W3 ANT - LED lighting column |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | FR |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 70-79 |
| Height/depth | 559 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 28 W |
| Rated luminous flux according to IEC 62722-2-1 | 2914 lm |
Packing details
| Packing level 1 | 3607640641258, 3607640641258 |
Other Technical data
| Mounting method | Post top/side entry |
| Protection class | I |
| Lamp holder | None |
| Colour housing | Anthracite |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Diameter | 234 mm |
| Housing material | Aluminium |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | Yes |
| Power factor | 0.97 |
Downloads
Description

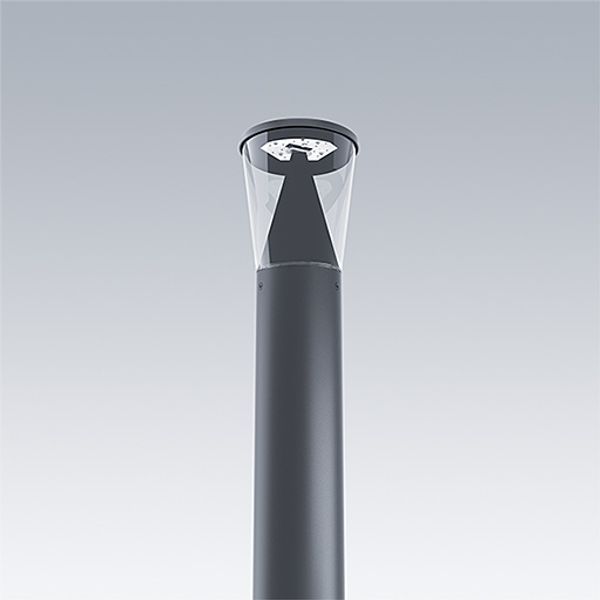

Slim lighting column with 18 LEDs driven at 500mA with Radial symmetrical comfort light distribution. Fixed output LED driver. Class I electrical, IP66, IK10. Base: die-cast aluminium (EN AC-44300). Finish: powder coated aluminium, texturized anthracite (close to RAL7043). Diffuser: UV stabilised clear polycarbonate. Pre-wired with 3m cable. Column to be ordered separately. Complete with 3000K LED.
Dimensions: Ø234 x 559 mm
Luminaire input power: 28 W
Weight: 4.89 kg
Scx: 0.06 m²
Luminaire efficacy: 104 lm/W
