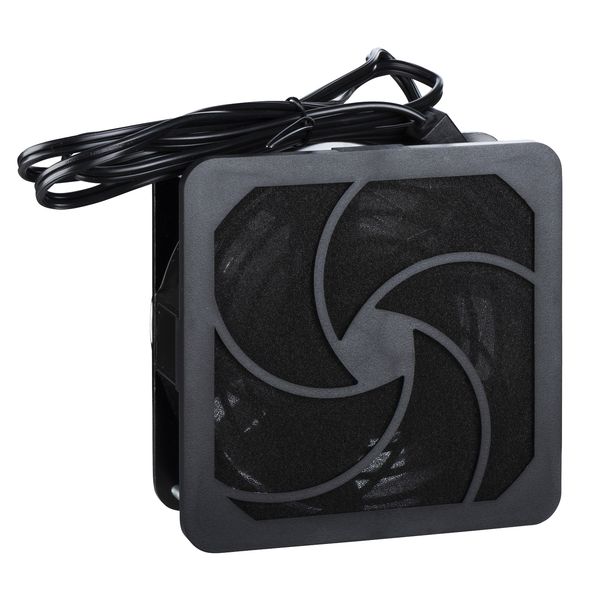

Climasys forced vent. 65 m3/hour, 230V, with outlet grille plastic and filter
Order only
Price (excl. VAT):
43,55 €
EAN: 3606480151378
MPN: NSYCVF65M230PF
Package: 1
Box: 10
Pallet: 400
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Climasys forced vent. 65 m3/hour, 230V, with outlet grille plastic and filter |
| Brand | Schneider Electric |
| Categories |
Cabinet Cooling and Heating
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Degree of protection (IP) | IP20 |
| Volume flow, freeblowing | 65 m³/h |
| Operating voltage at AC 50 Hz | 230 V |
| Operating voltage at AC 60 Hz | 230 V |
Packing details
| Packing level 1 | 3606480151378 |
| Packing level 2 | 3606480151372 |
| Packing level 3 | 3606480151378 |
Other Technical data
| Mounting method | Snap mounting |
| Colour | Black |
| Width | 124 mm |
| Height | 124 mm |
| Depth | 55 mm |
| RAL-number | 9005 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 1 |
| EMC-version | No |
| With protective cover | Yes |
| With filter | Yes |
| Rated power | 20 W |
| Roof ventilator | No |
| Built as slide-in ventilator | Yes |
| Air circulator | Yes |
| Suitable for wall built-in | No |
| Noise emission | 50 dB(A) |
Downloads
Description
Climasys Forced ventilator with outlet grille plastic and filter. 230 V 50/60 Hz input voltage. Free flow rate w/o filter/grille is 170 m3/h. Free flow rate w/ std. filter is 65 m3/h at 50 Hz. ABS for outlet grille, Polyurethane foam for filter. Black color. IP20. Cut-out dimensions 108 mm.
