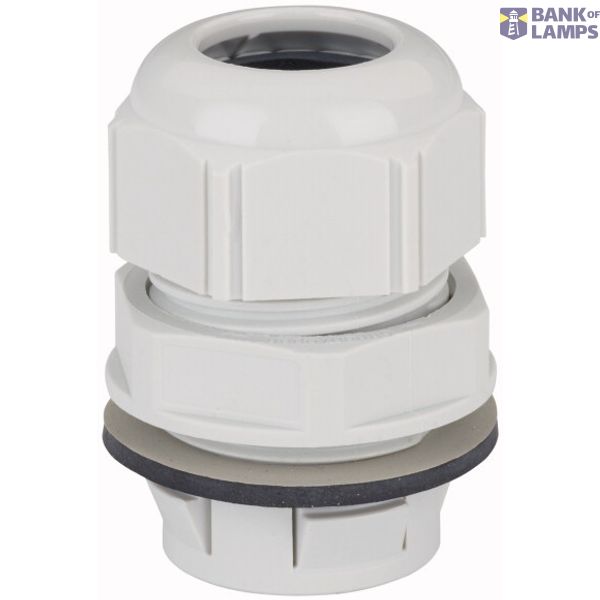

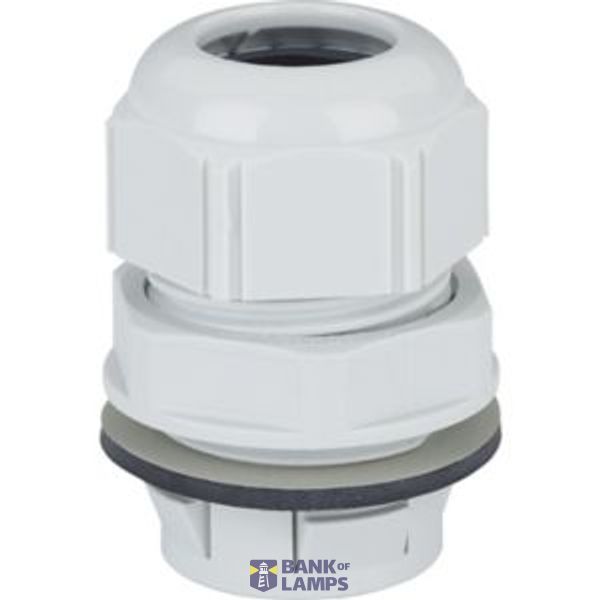

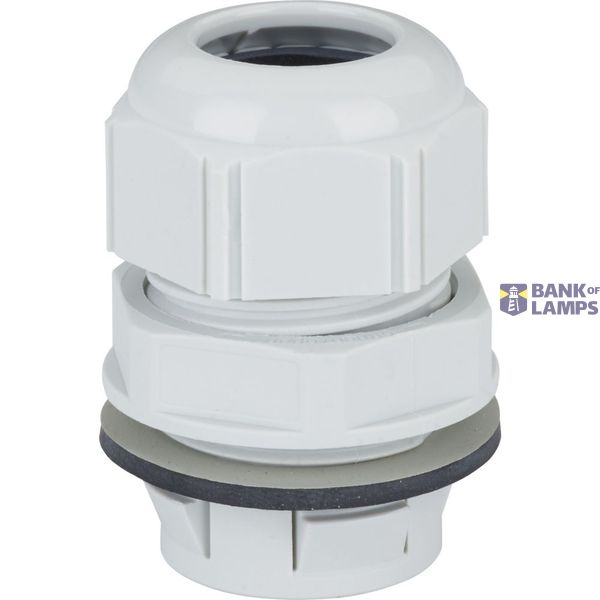

Click cable gland, M25, RAL 7035, IP68
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Click cable gland, M25, RAL 7035, IP68 |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3917 4000 00 |
| ETIM | EC000441 |
| Model | Straight |
| Thread length | 8 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 32 mm |
| Suitable for cable diameter | 9-17 mm |
| Degree of protection (IP) | IP68 |
| Nominal thread size inch/gas pipe thread | Other |
| Nominal thread size metric/PG | 25 |
Packing details
| Packing level 1 | 9010238208001 |
| Packing level 2 | 9010238208124 |
| Packing level 3 | 9010238208131 |
Other Technical data
| Colour | Grey |
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 7035 |
| Surface protection | Other |
| Bend radius protection/trumpet flare | No |
| With strain relief | Yes |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | Yes |
| Type of sealing | Sealing ring |
| Operating temperature | -20-100 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | Yes |
| Separable screw gland | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| For armoured cable | No |
| Snapping in opening | Yes |
| Pressure-compensating | No |
| Wrench width | 32 mm |
Description
Click cable gland, cable entry=M25, drilling dimensions=25.3mm, degree of protection IP68 to 5 bar (30 minutes), polyamide, halogen free, RAL 7035, with built-in strain relief, flammability classification V2 according to UL94
