Fixed Earthing Terminal Clamp for M16 for Round Conductor 7-10/Flat Conductor 30-40mm, Stainless Steel (V4A)

Order only

EAN: 4013364359512

MPN: 478150

Package: 1

Price (excl. VAT)

41,30 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Clamp f. fixed earthing terminal M16 f. Rd 7-10/Fl30-40mm StSt (V4A)
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC000513
Surface protection	Untreated
Type of fastening screws	Hexagon screw
Material	Stainless steel V4A
Clamping range	30-40 mm
Suitable for diameter round conductor	7-10 mm

Packing details

Packing level 1

4013364359512, 4013364359512

Other Technical data

Type of connector

Connection terminal

Downloads

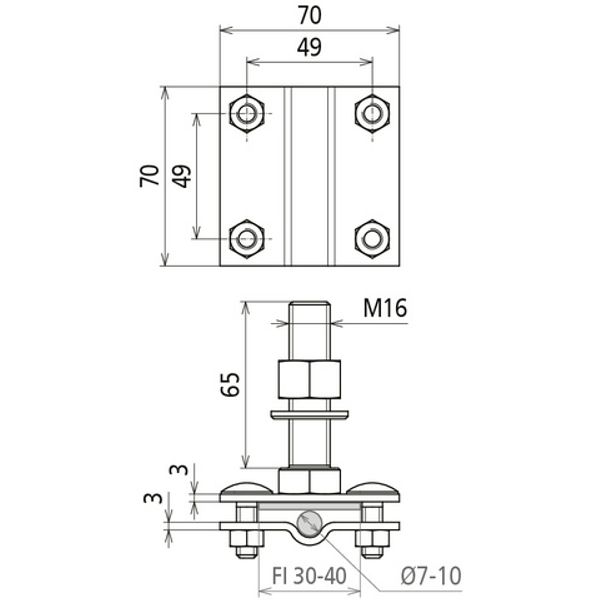

Product data sheet Dimensioned drawing

Description

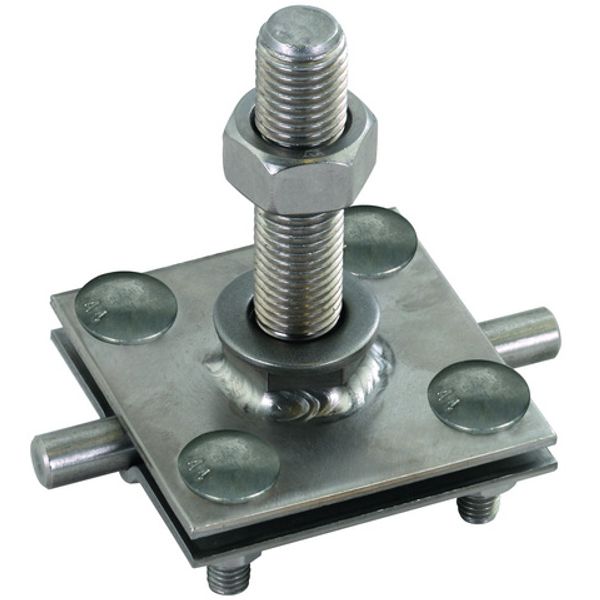

Connection clamps with threaded bolt for connecting round and flat conductors to fixed earthing terminals with M16 thread. Heavy design, with M16 connection thread.
