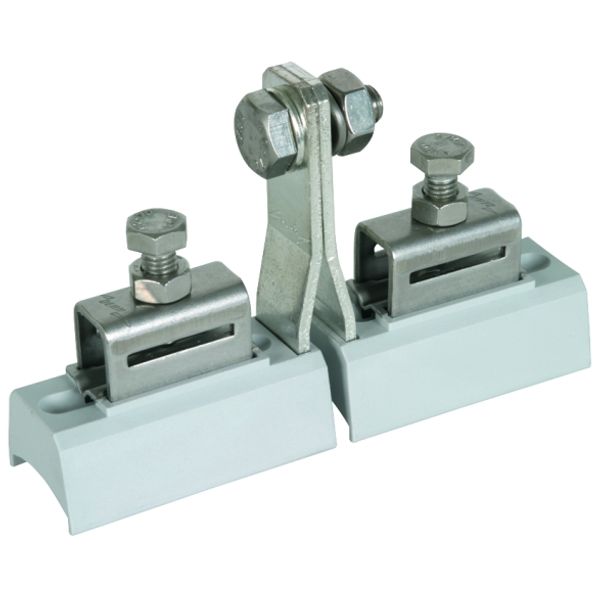

Clamp body f. hazardous. areas without tensioning strap Cu/galSn StSt,

Order only

Price (excl. VAT):

99,40 €

This price is valid until 24.12.26

EAN: 4013364115484

MPN: 540810

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Clamp body f. hazardous. areas without tensioning strap Cu/galSn StSt,
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Material	Stainless steel V2A
Clamping/chucking range	27-500 mm
Explosion-proof	Yes
Min. clamping range inch	3/4 inch

Packing details

Packing level 1

4013364115484, 4013364115484

Downloads

Product data sheet Dimensioned drawing

Description

Pipe clamp for electrical contacting of pipes in explosion-hazardous areas for implementing of lightning equipotential bonding according to IEC/EN 62305-3. For use in explosive atmospheres Ex zones 1 and 2 (gases, vapours, mists) as well as Ex zones 21 and 22 (dusts). Tested according to explosion group IIB and EN 62561-1. Time-saving installation - no need to deactivate systems / areas for welding or drilling work. Clamping body for use with endless tensioning strap 25 x 0.3 mm, for the clamping range D27-500 mm.
