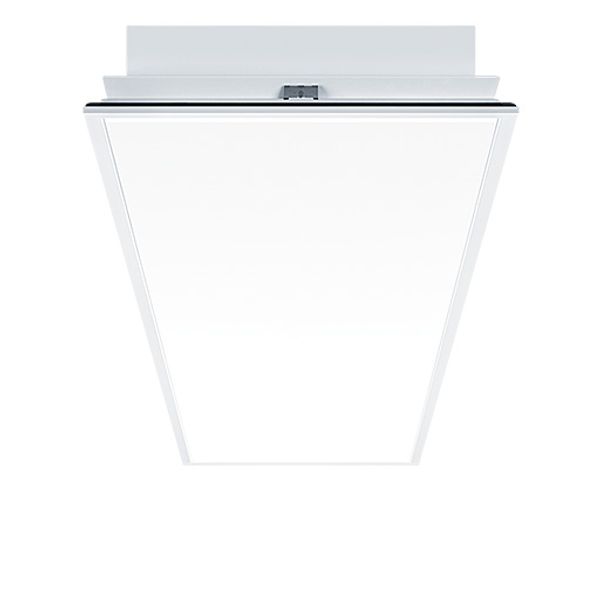

CL2 I 4600-840 M600L PM O LDO - Normal purity luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
762,79 €
EAN: 4053167399537
MPN: 42186884
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CL2 I 4600-840 M600L PM O LDO - Normal purity luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | AT |
| Harmonized System Code | 9405 1190 00 |
| Width | 298 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1198 mm |
| Height/depth | 105 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 30.8 W |
| Rated luminous flux according to IEC 62722-2-1 | 4590 lm |
| Luminaire efficacy | 150 lm/W |
Packing details
| Packing level 1 | 4053167399537, 4053167399537 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 274 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Steel |
| Built-in length | 1184 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 11 |
| Rated ambient temperature according to IEC62722-2-1 | -20-50 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 21 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 105 mm |
| Power factor | 0.95 |
Downloads
Description
Normal purity luminaire CLEAN II Industry Luminaire input power: 30.8 W LED Slave luminaire for DALI control (DALI only) with LED converter. LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 4590 lm, Luminaire efficacy: 149 lm/W.Colour rendering Ra > 80, colour temperature 4000 K. sheet steel housing in white, powder coated finish (resistant to oil vapours, chemical attack, disinfectants and cleaning agents – always check the cleaning instructions and materials first before use). Certified by the Fraunhofer Institute – Suitable for use in clean rooms of cleanliness class 1 to 9 as per EN EN ISO 14644-1. Complies with GMP (Good Manufacturing Practice) regulations. Cover made of PMMA for chemical resistance in clean rooms and industry applications. Thermoforming technology, frameless design for high demands on hygiene and easy, fast cleaning Certified by the Fraunhofer Institute: Cleanroom suitability according to DIN EN ISO 14644-1 for cleanroom class 1 to 9. Conformity to the regulations of GMP (Good Manufacturing Practice). Flush-mounting via ceiling drop-in mounting or NIV-sets for secure, inconspicuous mounting for various ceiling types. ambient temperature: -20°C to +50°C; Luminaire wired with halogen-free and silicone-free leads; Impact strength: IK03; protection rating: IP65- IP50 upper side of the luminaire, IP65 lower side of the luminaire; Dimensions: 1198 x 298 x 105 mm weight: 4.7 kg.
