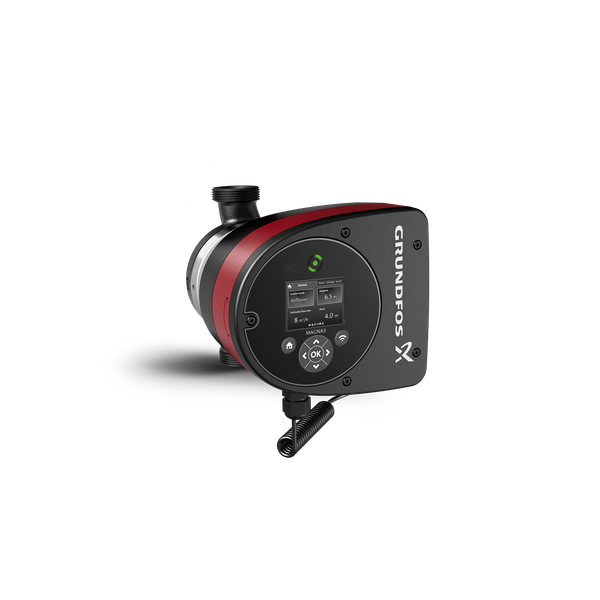

Circulator pump MAGNA3 32-120 180 1x230V PN10
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 193,50 €
EAN: 5711498165908
MPN: 98609707
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Circulator pump MAGNA3 32-120 180 1x230V PN10 |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | DE |
| Harmonized System Code | 8413 7030 00 |
| Nominal current | 1.56 A |
| Number of phases | 1 |
| Max. discharge flow | 9.7 m³/h |
| Max. static height | 12 m |
| Flange shape | Other |
| Rotational speed | 4980 1/min |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Rated voltage | 230 V |
| Built-in length | 180 mm |
| Frequency | 50 Hz |
| Degree of protection (IP) | IPX4 |
| Radio standard Bluetooth | Yes |
| Radio standard Wi-Fi 802.11 | Yes |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power input (P1) per motor | 0.182 kW |
| Volume flow rate (BEP) | 5.53 m³/h |
| Discharge head at flow rate (BEP) | 72.55 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | Yes |
| Radio standard 5G | Yes |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for BACnet MS/TP | Yes |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | Yes |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | Yes |
| Radio standard 3G | Yes |
| Radio standard 4G | Yes |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Pump circuit | Other |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 25 (GJL-250) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | Other |
| Connection inlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 2 inch (50) |
| Nominal diameter connection outlet side | 2 inch (50) |
| Connection outlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Energy Efficiency Index (EEI) | 0.18 |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 5711498165908, 5711498165908 |
Downloads
Description
MAGNA3 circulator pump is the ideal choice for almost any building projectold or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, Ideal to create high-performance heating and cooling systems.
