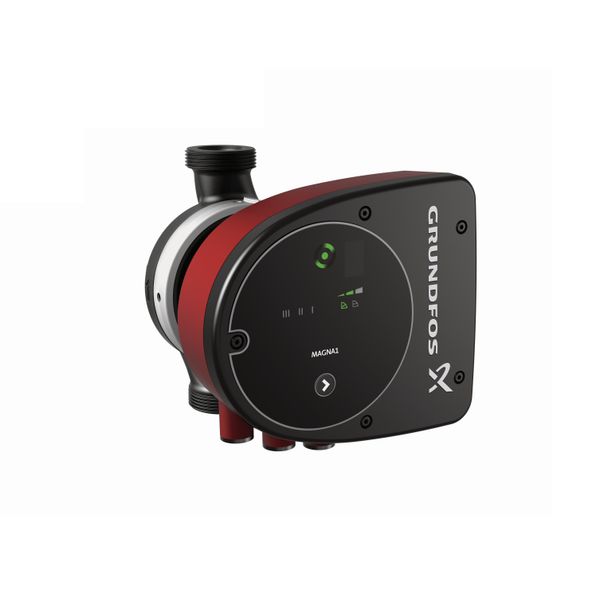

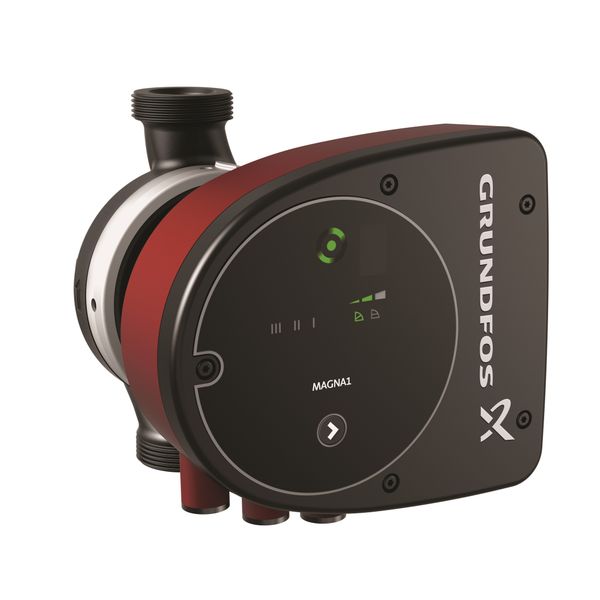

Circulator pump MAGNA1 32-100 180 1x230V PN10
Order only
Price (excl. VAT):
753,43 €
EAN: 5712608942099
MPN: 99221236
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Circulator pump MAGNA1 32-100 180 1x230V PN10 |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| Nominal current | 1.41 A |
| Number of phases | 1 |
| Max. discharge flow | 10.5 m³/h |
| Max. static height | 10 m |
| Flange shape | Other |
| Rotational speed | 4534 1/min |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |
| Rated voltage | 230 V |
| Built-in length | 180 mm |
| Frequency | 50 Hz |
| Degree of protection (IP) | IPX4 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power input (P1) per motor | 0.175 kW |
| Volume flow rate (BEP) | 5.25 m³/h |
| Discharge head at flow rate (BEP) | 70.59 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Communication | Built-in |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Pump circuit | Other |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 20 (GJL-200) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | Other |
| Connection inlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 2 inch (50) |
| Nominal diameter connection outlet side | 2 inch (50) |
| Connection outlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Energy Efficiency Index (EEI) | 0.2 |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 5712608942099, 5712608942099 |
Downloads
Description
The Grundfos MAGNA1 circulator pump is the simple option for a job well done.
