Circulator pump ALPHA2 GO 15-75 130 220-240V 9H AG0
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Circulator pump ALPHA2 GO 15-75 130 220-240V 9H AG0 |
| Brand | GRUNDFOS |
| Country of origin* | SR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| ETIM | EC010980 |
| Nominal current | 0.68 A |
| Number of phases | 1 |
| Max. discharge flow | 4.5 m³/h |
| Max. static height | 7.5 m |
| Flange shape | Other |
| Rotational speed | 5837 1/min |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |
| Rated voltage | 220 V |

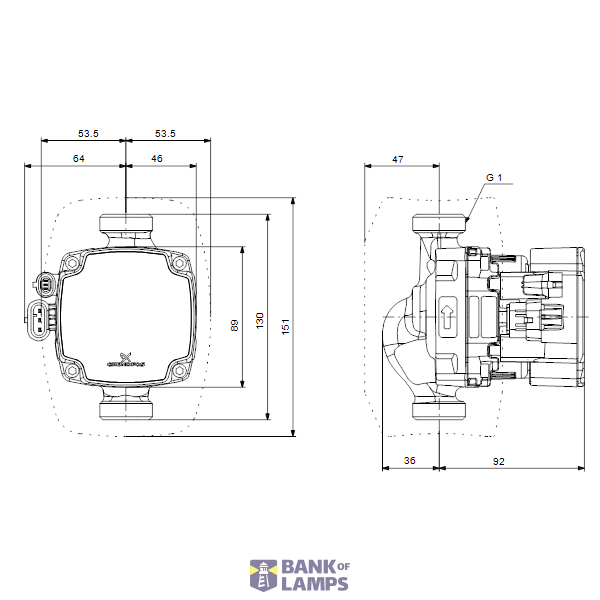

| Built-in length | 130 mm |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP44 |
| Radio standard Bluetooth | Yes |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power input (P1) per motor | 0.075 kW |
| Volume flow rate (BEP) | 2.52 m³/h |
| Discharge head at flow rate (BEP) | 53.92 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Communication | Built-in |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | No |
| Interface signal 0-20 mA / 4-20 mA | No |
| Interface PT100 / PT1000 / PTC | No |

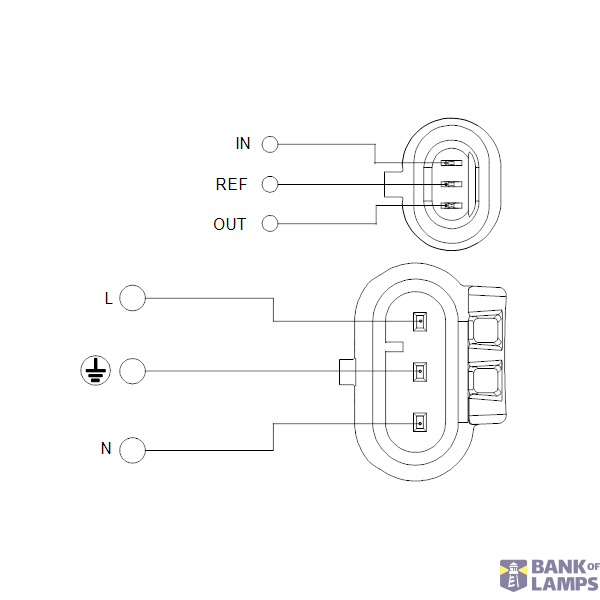

| Interface Pulse Width Modulation (PWM) | Yes |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Pump circuit | Other |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 15 (GJL-150) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | Other |
| Connection inlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Connection outlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Energy Efficiency Index (EEI) | 0.19 |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 5715467685855, 5715467685855 |
Downloads
Description

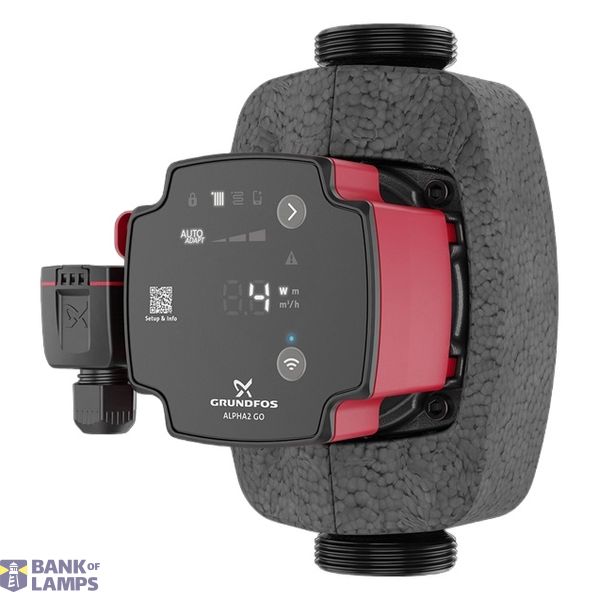

ALPHA2 GO is a high-efficiency circulator pump designed for heating and air conditioning systems. Connect to the Grundfos GO app via the built-in Bluetooth for guided setup and additional features.
