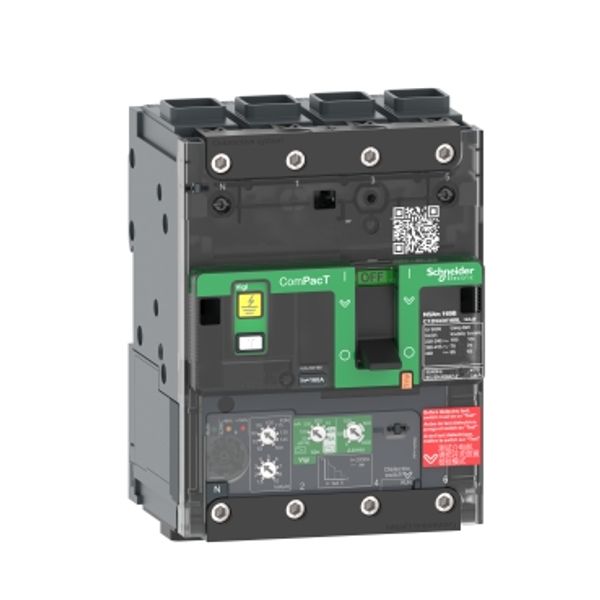

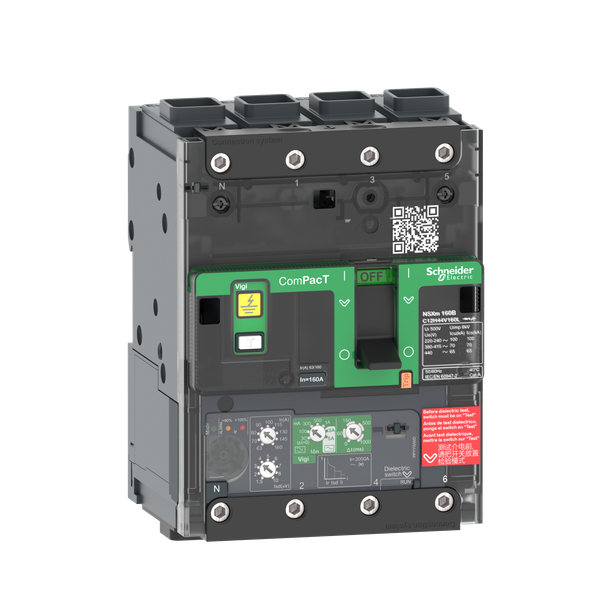

Circuit breaker, ComPacT NSXm 100B, 25kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs
Order only
Price (excl. VAT):
696,85 €
EAN: 3606481992567
MPN: C11B44V025L
Package: 1
Box: 4
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Circuit breaker, ComPacT NSXm 100B, 25kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs |
| Brand | Schneider Electric |
| Categories |
Power Circuit Breakers
|
| Harmonized System Code | 8536 2010 00 |
| Rated permanent current Iu | 25 A |
| Number of poles | 4 |
| Rated voltage | 440 V |
| Degree of protection (IP) | IP40 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 25 kA |
| Integrated earth fault protection | Yes |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3606481992567 |
| Packing level 2 | 3606481992564 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Overload release current setting | 10-25 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range short-term delayed short-circuit release | 15-250 A |
| Adjustment range undelayed short-circuit release | 375 A |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Motor drive optional | No |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
Downloads
Description
ComPacT NSXm100B is a complete 4P fixed circuit breaker designed to optimize space and breaking capacity. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 4 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
