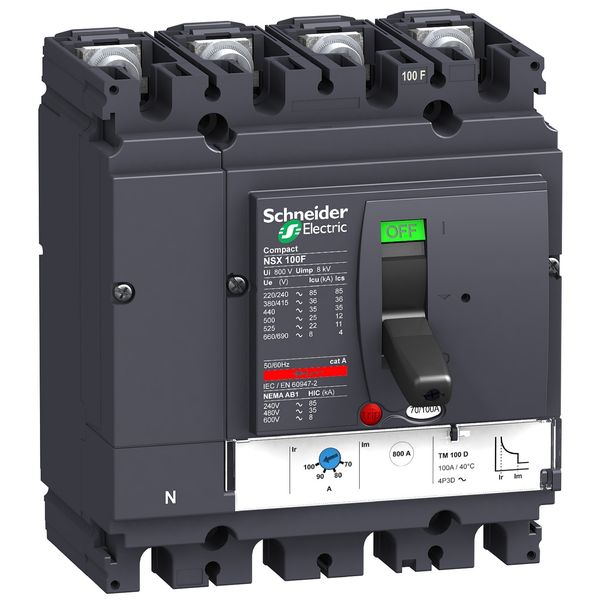

circuit breaker ComPact NSX100F, 36 kA at 415 VAC, TMD trip unit 100 A, 4 poles 3d
In stock: No
Vendor stock: No
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
366,43 €
EAN: 3606480008856
MPN: LV429640
Package: 1
Estimate delivery time at our warehouse (approx.):
6-9 weeks
Technical Information
| Item condition | New |
| Manufacture name | circuit breaker ComPact NSX100F, 36 kA at 415 VAC, TMD trip unit 100 A, 4 poles 3d |
| Brand | Schneider Electric |
| Categories |
Power Circuit Breakers
|
| Country of origin | PL |
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 100 A |
| Number of poles | 4 |
| Rated voltage | 690 V |
| Degree of protection (IP) | IP40 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 36 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3606480008856 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With integrated under voltage release | No |
| Overload release current setting | 70-100 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range undelayed short-circuit release | 800 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Complete device with protection unit | Yes |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Mounting instruction
Description
This Compact NSX100F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
