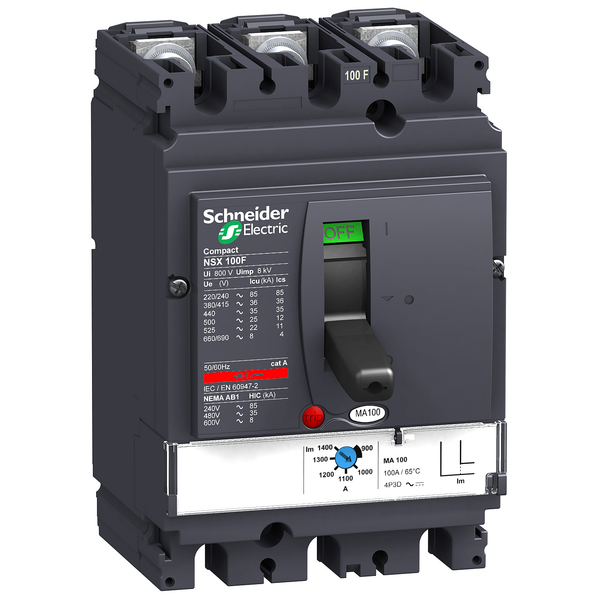

circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d image 1
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d image 2
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d image 3
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d image 4
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d thumbnail 1
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d thumbnail 2
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d thumbnail 3
circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d thumbnail 4
Schneider Electric

circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
664,93 €
This price is valid until 31.08.25
EAN: 3606480009259
MPN: LV429740
Package: 1
Box: 12
Estimate delivery time at our warehouse (approx.): 4-9 weeks

Technical Information

Item condition New
Manufacture name circuit breaker ComPact NSX100F, 36 kA at 415 VAC, MA trip unit 100 A, 3 poles 3d
Brand Schneider Electric
Categories Motor protection circuit-breakers
Country of origin FR
Harmonized System Code 8536 2090 00
Rated permanent current Iu 100 A
Number of poles 3
Rated operating voltage 690 V
Degree of protection (IP) IP40
Rated short-circuit breaking capacity lcu at 400 V, AC 36 kA
Adjustment range undelayed short-circuit release 600-1400 A

Packing details

Packing level 1 3606480009259
Packing level 2 3606480009257

Other Technical data

Width 105 mm
Height 161 mm
Depth 86 mm
Rated operation power at AC-3, 400 V 0 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection No
Type of electrical connection of main circuit Screw connection
Type of control element Other
Switch off technique Magnetic
Rated operation power at AC-3, 230 V 0 kW
Phase failure sensitive No
Device construction Built-in device fixed built-in technique

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Others Mounting instruction

Description

This Compact NSX100F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100A rating magnetic trip unit (MA). MA trip unit provides an adjustable magnetic protection for instantaneous tripping. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
