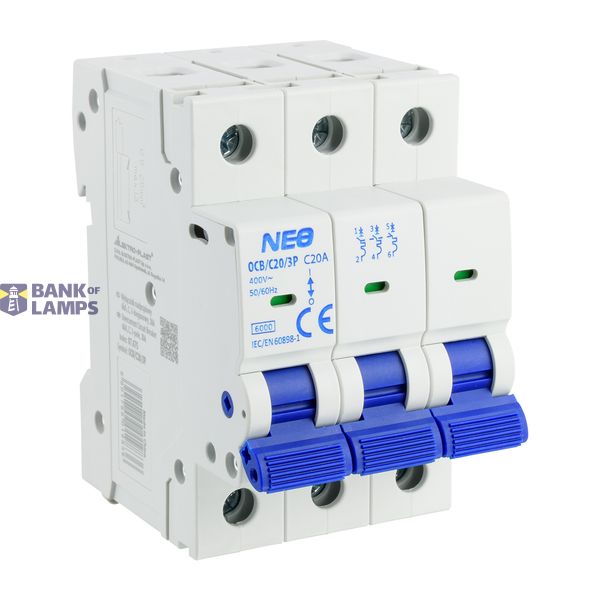

Circuit breaker, 6kA, C, 3-pole, 20A OCB/C20/3P
Order only
EAN: 5901769019836
MPN: 05901769019836
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Circuit breaker, 6kA, C, 3-pole, 20A OCB/C20/3P |
| Brand | Elektro-Plast |
| Categories |
Circuit breakers 20A
|
| ETIM | EC000042 |
| Rated current | 20 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Width in number of modular spacings | 3 |
| Number of poles (total) | 3 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 5901769019836 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 50 mm |
| Frequency | 50 Hz |
| Rated insulation voltage Ui | 500 V |
| Current limiting class | 1 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 3 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 1-16 mm² |
| Connectable conductor cross section multi-wired | 1-16 mm² |
| Ambient temperature during operating | -5-40 °C |
| Flush-mounted installation | No |
| Additional equipment possible | No |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 10 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
Description
NEO Circuit Breakers – Reliable Protection for Your Electrical Installation! An overcurrent circuit breaker (MCB) is a key element protecting electrical installations against the effects of overloads and short circuits. Thanks to advanced technology and high precision, it ensures safety in both residential and industrial buildings.
Advantages of using a circuit breaker:
Multiple uses – after tripping, it can be re-activated, eliminating the need for frequent replacement, as with traditional fuses.
Quick and easy TH35/DIN installation – compatibility with popular mounting rails ensures convenient and trouble-free installation in electrical distribution boards.
Precise sensitivity and selectivity – the availability of various current characteristics allows for perfect matching of the protection to the specific load and type of receivers.
Available characteristics:
Characteristic B – quick tripping in the event of an overload (e.g., in lighting circuits, household sockets).
Characteristic C – standard protection for devices with moderate inrush currents (e.g., motors, transformers).
Thanks to its reliable operation and high-quality construction, the NEO circuit breaker is a reliable and durable solution for any electrical installation. Choose safety and efficiency – choose proven protection against the effects of short circuits and overloads!
