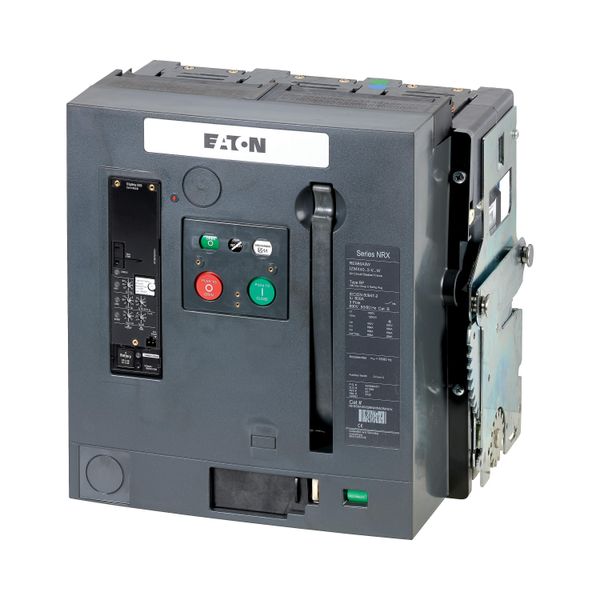

Circuit-breaker, 3p, 2500A, withdrawable

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

7 437,47 €

This price is valid until 24.12.25

EAN: 4015081463848

MPN: 149770

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Circuit-breaker, 3p, 2500A, withdrawable
Brand	EATON
Categories	Breakers
Country of origin	US
Harmonized System Code	8536 2090 00
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	2500 A
With integrated under voltage release	No
Number of poles	3
Overload release current setting	1250-2500 A
Number of auxiliary contacts as change-over contact	2
Rated voltage	690 V
Degree of protection (IP)	IP20
Position of connection for main current circuit	Back side
Motor drive integrated	No
Type of electrical connection of main circuit	Rail connection
Type of control element	Push button
With switched-off indicator	No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	66 kA
Adjustment range short-term delayed short-circuit release	5000-25000 A
Adjustment range undelayed short-circuit release	5000-30000 A
Suitable for DIN rail (top hat rail) mounting	No
Integrated earth fault protection	No
Motor drive optional	No
Device construction	Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	No

Packing details

Packing level 1

4015081463848

Description

Circuit-breaker IZMX40 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 2500 A, up to 440 V 50/60 Hz( Icu): 66 kA, up to 440 V 50/60 Hz( Ics): 66 kA, Overload release, min.( Ir): 1250 A, Overload release, max.( Ir): 2500 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: Selective operation
