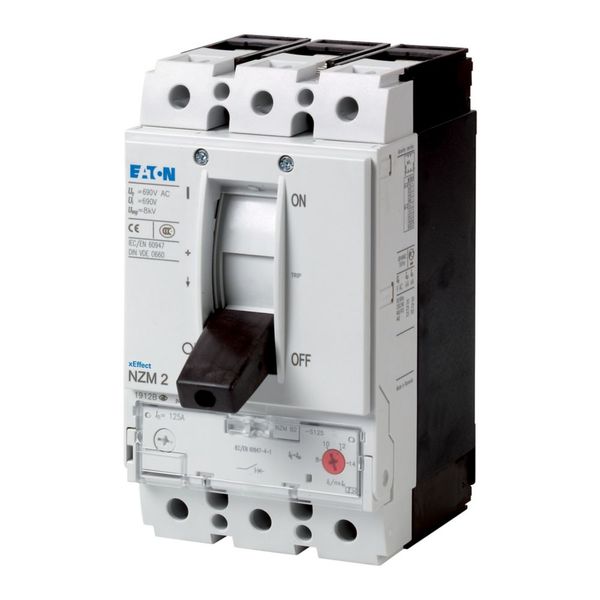

NZMB2-S200 Circuit-breaker, 3p, 200A
Order only
Price (excl. VAT):
262,92 €
EAN: 4015082657383
MPN: 265738
Package: 1
Estimate delivery time at our warehouse (approx.):
8-10 weeks
Technical Information
| Item condition | New |
| Manufacture name | NZMB2-S200 Circuit-breaker, 3p, 200A |
| Brand | EATON |
| Categories |
Motor protection circuit-breakers
|
| Country of origin | RO |
| Harmonized System Code | 8536 2090 00 |
| Rated permanent current Iu | 200 A |
| Number of poles | 3 |
| Rated operating voltage | 440 V |
| Overload release current setting | 0 A |
| Degree of protection (IP) | IP20 |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 18.5 kA |
| Adjustment range undelayed short-circuit release | 8-44328 A |
Packing details
| Packing level 1 | 4015082657383 |
Other Technical data
| Width | 105 mm |
| Height | 184 mm |
| Depth | 149 mm |
| Rated operation power at AC-3, 400 V | 110 kW |
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| With thermal protection | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Rocker lever |
| Switch off technique | Magnetic |
| Rated operation power at AC-3, 230 V | 55 kW |
| Phase failure sensitive | No |
| Device construction | Built-in device fixed built-in technique |
Description
Series NZM..-S circuit-breakers cover all application cases with just four compact sizes and are suitable for the IEC market. Modular function groups always make mounting flexible. With magnetic short-circuit release in connection with overload relay. With short-circuit release without overload trip. Notes: circuit-breakers fulfill all requirements of the switching category AC-3.
